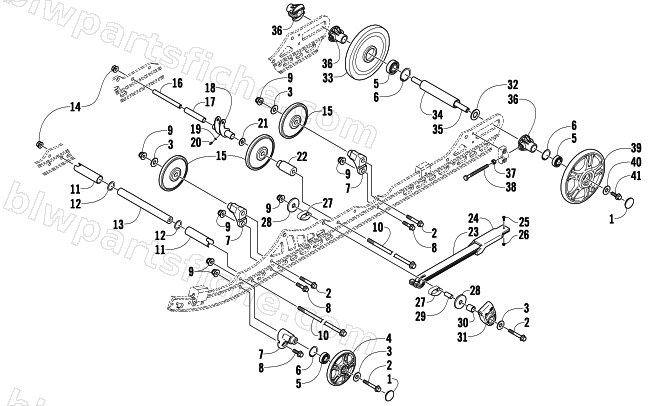

IDLER WHEEL ASSEMBLY
2012 TZ1
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1604-952 | CAP,IDL WHL-BLACK | 1 | $13.73 | |
| 2 | 8408-880 | SCREW,CAP-HFH M8X1.25X80 CL8.8 Z&Y | 1 | $1.09 | |
| 3 | 8450-133 | WASHER,FLAT-M8-9.12 X 25.40 X 2.30Z&Y | 1 | $0.28 | |
| 4 | 3604-621 | WHEEL,IDL-5.63 W.787"ID-DESERT RED | 1 | $53.95 | |
| 5 | 3604-033 | BEARING,WHL-NSK CHINA 6004-W/ENS GREASE | 1 | $20.63 | |
| 6 | 0623-946 | RING,INTERNAL RETAINING-#165 | 1 | $2.06 | |
| 7 | 3604-004 | BLOCK,MTG-IDLER WHEEL(DIE CAST) | 1 | $29.95 | |
| 8 | 8408-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 Z&Y | 1 | $0.95 | |
| 9 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 10 | 1423-064 | R/B 1423-431 | 1 | $20.95 | |
| 11 | 3604-083 | SPACER,FRONT ARM SHOCK | 1 | $12.35 | |
| 12 | 0623-912 | WASHER,FLAT-.890 X 1.19 X .060 Z&Y | 1 | $0.95 | |
| 13 | 3604-269 | AXLE,ALUM-22.2 X 222.2 | 1 | $60.95 | |
| 14 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 15 | 3604-807 | WHEEL,IDL-5.63 W.787"ID-BLK (NO SPK) | 1 | $53.95 | |
| 16 | 3604-285 | AXLE,REAR ARM-INNER-M10X155.5 | 1 | $16.49 | |
| 17 | 3604-325 | SPACER, AUX WHEEL-INSIDE | 1 | $38.95 | |
| 18 | 1704-674 | PIVOT, REAR SHOCK-FABR | 1 | $42.95 | |
| 19 | 1623-011 | WASHER- GREASE FITTING | 1 | $0.68 | |
| 20 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 21 | 1623-794 | WASHER,FLAT-.636 1.000 X .063 Z&Y | 1 | $0.95 | |
| 22 | 3604-327 | BLOCK, MTG-IDLER WHEEL-M10 | 1 | $29.95 | |
| 23 | 1704-279 | R/B 3704-276 | 1 | $125.95 | |
| 24 | 2604-788 | BLOCK,WEAR-SPRING SLIDE - .19 HOLE | 1 | $24.77 | |
| 25 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 | |
| 26 | 8041-276 | NUT,HEX THIN LOCK-NYL 10-32 Z&Y | 1 | $0.26 | |
| 27 | 1604-412 | CLIP,RETAINING H.D.-SLOTTED | 1 | $44.95 | |
| 28 | 0623-746 | WASHER,2.00X.386X.1046 | 1 | $2.06 | |
| 29 | 0604-739 | BUSHING,OVERLOAD | 1 | $4.26 | |
| 30 | 1604-430 | SPACER,SPRING SLIDE | 1 | $17.87 | |
| 31 | 2604-516 | SLIDE, SPRING-TALL | 1 | $6.06 | |
| 32 | 0623-921 | WSHR, FLAT.788ID X 1.50OD X .109 | 1 | $1.64 | |
| 33 | 3604-060 | WHEEL,IDL-7.12 W.787"ID BLK(NO SPOKE) | 1 | $53.95 | |
| 34 | 1604-940 | SPACER,REAR WHEEL- 6.456 LG | 1 | $15.11 | |
| 35 | 3604-326 | AXLE,ALUM-REAR WHEEL-M8X343.4 | 1 | $37.95 | |
| 36 | 1704-680 | BUSHING, ADJ-4 WHL-MACH | 1 | $12.35 | |
| 37 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 38 | 0124-310 | HHCS 3/8-16X4.0 THREADED GR5 Z&Y | 1 | $2.47 | |
| 39 | 3604-622 | WHEEL,IDL-7.12 W.787"ID-DESERT RED | 1 | $53.95 | |
| 40 | 0623-664 | WASHER,FLAT 1.00X.390X.164 Z&Y | 1 | $1.23 | |
| 41 | 8408-831 | SCREW,CAP-HFH M8X1.25X30 CL8.8 W/2353 | 1 | $0.95 |
