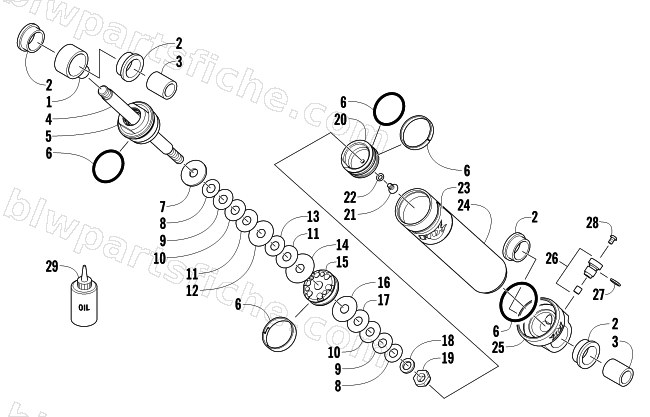

2012 Arctic Cat TZ1 TURBO LXR LTD — REAR SUSPENSION REAR ARM SHOCK ABSORBER
2012 TZ1 TURBO LXR LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2704-050 | SHOCK,REAR ARM-ZERO PRO-15.13" | 1 | $157.95 | |
| 1 | 0604-893 | EYELET, SHOCK(FOX ONLY) | 1 | $81.95 | |
| 2 | 1604-222 | BUSHING,REAR ARM SHOCK-.125" LIP | 1 | $17.87 | |
| 3 | 2604-223 | SLEEVE, .571 X .815 X .950TLG | 1 | $33.95 | |
| 4 | 3604-481 | SHAFT,CHROME-.498" X 7.685" | 1 | $99.95 | |
| 5 | 2604-413 | BEARING,ENDCAP.498" X 1.21"-ASSY | 1 | $151.95 | |
| 6 | 2604-815 | SEAL/BEARING-REBUILD KIT | 1 | $92.95 | |
| 7 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 8 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 9 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 10 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 11 | 0603-344 | VALVE,1.100X.010(3/8ID) | 1 | $12.95 | |
| 12 | 0603-347 | VALVE,1.250X.010(3/8ID) | 1 | $13.95 | |
| 13 | 0603-337 | VALVE, .900X.008(3/8ID) | 1 | $12.95 | |
| 14 | 0603-350 | VALVE,1.300X.010(3/8ID) | 1 | $17.95 | |
| 15 | 2603-482 | PISTON,.046 ORIFICE- (FOX) | 1 | $62.95 | |
| 16 | 0603-883 | VALVE, SHOCK 1.250 X.012(3/8ID) | 1 | $6.95 | |
| 17 | 0603-888 | VALVE, SHOCK 1.100 X.015 | 1 | $6.89 | |
| 18 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 19 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 20 | 2604-816 | PISTON,FLOATING-ASSY | 1 | $116.95 | |
| 21 | 1604-316 | SCREW, RELIEF W/ O-RING | 1 | $4.95 | |
| 22 | 1604-425 | O-RING(FOX ONLY) | 1 | $4.95 | |
| 23 | 2604-897 | DECAL,SHOCK-ZERO PRO 5.1X1.375(2005) | 1 | $23.39 | |
| 24 | 3604-482 | BODY,SHOCK-ALUM-1.459 BORE- 7.670 TLG | 1 | $251.95 | |
| 25 | 2604-817 | BODY,CAP-ALUM BODY-ASSY | 1 | $164.95 | |
| 26 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 27 | 1604-318 | O-RING-END CAP FITTING(FOX ONLY) | 1 | $11.95 | |
| 28 | 0624-097 | SCREW, MACH HSBH #8-32X.25 (SS) | 1 | $0.85 | |
| 29 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
