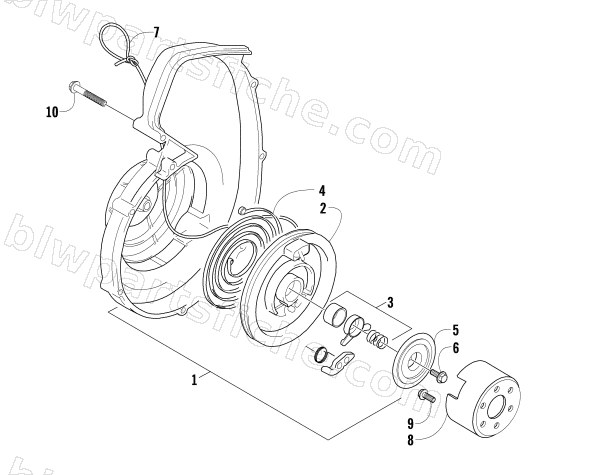

2012 Arctic Cat T570 — RECOIL STARTER
2012 T570
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-688 | STARTER ASSY,RECOIL | 1 | $314.95 | |
| 2 | 3006-090 | REEL,RECOIL '02 570 F/C | 1 | $68.95 | |
| 3 | 3006-091 | RACHET SET,RECOIL '02 570 F/C | 1 | $49.95 | |
| 4 | 3007-487 | SPRING,SPIRAL | 1 | $89.95 | |
| 5 | 3006-092 | FRICTION PLATE, RECOIL '02 570 F/C | 1 | $29.95 | |
| 6 | 3006-093 | BOLT SET,RECOIL '02 570 F/C | 1 | $12.35 | |
| 7 | 3006-889 | ROPE,STARTER-C.T.L(6MM DIA)(203 CM) | 1 | $27.95 | |
| 8 | 3006-020 | PULLEY,STARTER | 1 | $88.95 | |
| 9 | 3006-463 | BOLT, 8X18.5 | 1 | $4.26 | |
| 10 | 3007-488 | BOLT | 1 | $3.85 |
