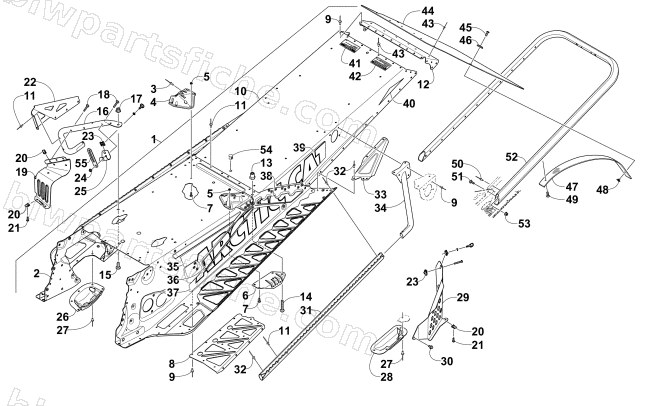

2012 Arctic Cat SNO PRO 600 — TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY
2012 SNO PRO 600
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1707-677 | CHASSIS,128" RACE-PTD PRL CAT GRN | 1 | $2,712.95 | |
| 1 | 1707-768 | TUNNEL,RACE-S/P ASSY-PTD PEARL CAT GRN | 1 | $1,316.95 | |
| 2 | 1707-766 | CHASSIS,RACE-SPR ASSY-PTD PEARL CAT GRN | 1 | $2,646.95 | |
| 3 | 1623-206 | RIVET,3/16 HUCK-M9 | 1 | $2.06 | |
| 4 | 1707-736 | BRKT,SPAR SUPPORT-RH PTD GRN | 1 | $30.95 | |
| 4 | 1707-737 | BRKT,SPAR SUPPORT-LH PTD GRN | 1 | $30.95 | |
| 5 | 8422-502 | NUT, M5 X 0.8 NYLOC - YL ZN | 1 | $0.40 | |
| 6 | 1607-196 | PLATE,BACKING-REAR SPAR SUPPORT-RH | 1 | $30.95 | |
| 6 | 1607-197 | PLATE,BACKING-REAR SPAR SUPPORT-LH | 1 | $30.95 | |
| 7 | 8476-512 | SCREW,MACH-TSTRH M5X0.8X12 Z&Y | 1 | $1.23 | |
| 8 | 1707-732 | SUPPORT,RUN BOARD-RH PTD PRL CAT GRN | 1 | $106.95 | |
| 8 | 1707-733 | SUPPORT,RUN BOARD-LH PTD PRL CAT GRN | 1 | $106.95 | |
| 9 | 8060-682 | RIVET,BLIND-DH SS62 ZINC | 1 | $0.12 | |
| 10 | 1707-729 | TUNNEL,REAR-PTD GRN | 1 | $285.95 | |
| 11 | 1623-130 | RIVET,3/16 HUCK-M4 | 1 | $1.64 | |
| 12 | 1707-405 | CLOSE OFF,TUNNEL-PTD GRN | 1 | $46.95 | |
| 13 | 2704-301 | BUSHING,STOP-RR ARM-PTD PEARL CAT GRN | 1 | $17.87 | |
| 14 | 8468-850 | SCREW,MACH-TSPNH M8X1.25X50 CL8.8 BLK | 1 | $10.97 | |
| 15 | 8476-820 | SCREW,MACH-TSTRH M8X1.25X20 Z&Y | 1 | $0.95 | |
| 16 | 1707-636 | HOOK,TOE-RH PTD BLK | 1 | $93.95 | |
| 16 | 1707-637 | HOOK,TOE-LH PTD BLK | 1 | $93.95 | |
| 17 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 18 | 8468-536 | SCREW,MACH-TSPNH M5X0.8X35 CL8.8 W/2353 | 1 | $1.78 | |
| 19 | 1707-556 | TOE STOP,RH - FORMED-PTD BLK | 1 | $29.95 | |
| 19 | 1707-557 | TOE STOP,LH - FORMED-PTD BLK | 1 | $29.95 | |
| 20 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 21 | 8470-516 | SCREW,MACH-TSPNH M5X.8X16 CL8.8 Z&Y | 1 | $0.26 | |
| 22 | 1707-634 | STIRRUP,TOE STOP-RH-PTD BLK | 1 | $44.95 | |
| 22 | 1707-635 | STIRRUP,TOE STOP-LH-PTD BLK | 1 | $42.95 | |
| 23 | 1623-748 | CLIP, RECEPTACLE-1/4 TURN STUD | 1 | $5.65 | |
| 24 | 8427-502 | NUT,HEX FLG-NYL LOCK M5X0.8 CL8 Z&Y | 1 | $0.95 | |
| 25 | 6606-350 | BRKT,MTG-SIDE PANEL | 1 | $30.95 | |
| 26 | 1607-109 | PROTECTOR,CHAIN CASE | 1 | $5.51 | |
| 27 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 28 | 0607-351 | PROTECTOR,BRAKE DISC-BOTTOM | 1 | $12.35 | |
| 29 | 1707-778 | COVER,SHIELD-BRAKE DISK-PTD BLK | 1 | $73.95 | |
| 30 | 8408-613 | SCREW,CAP-HFH M6X1.0X12 CL8.8 Z&Y W/2353 | 1 | $1.50 | |
| 31 | 1707-730 | EDGE,RUNNING BOARD-RH PTD GRN | 1 | $56.95 | |
| 31 | 1707-731 | EDGE,RUNNING BOARD-LH PTD GRN | 1 | $56.95 | |
| 32 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 33 | 1707-734 | GUSSET,RUNNING BOARD-RH PTD GRN | 1 | $27.95 | |
| 33 | 1707-735 | GUSSET,RUNNING BOARD-LH PTD GRN | 1 | $27.95 | |
| 34 | 1707-652 | SUPPORT,TUNNEL-RH-PTD PRL CAT GRN | 1 | $43.95 | |
| 34 | 1707-653 | SUPPORT,TUNNEL-LH-PTD PRL CAT GRN | 1 | $43.95 | |
| 35 | 0621-194 | DECAL,TUNNEL-"ARCTIC CAT-RH 5 WHT | 1 | $15.11 | |
| 35 | 0621-121 | DECAL,TUNNEL-"ARCTIC CAT" LH 5 GRN | 1 | $15.11 | |
| 36 | 0621-192 | DECAL,TUNNEL-"ARCTIC CAT-RH 4 WHT | 1 | $15.11 | |
| 36 | 0621-119 | DECAL,TUNNEL-"ARCTIC CAT" LH 4 GRN | 1 | $15.11 | |
| 37 | 0621-190 | DECAL,TUNNEL-"ARCTIC CAT-RH 3 WHT | 1 | $26.95 | |
| 37 | 0621-117 | DECAL,TUNNEL-"ARCTIC CAT" LH 3 GRN | 1 | $26.95 | |
| 38 | 0621-188 | DECAL,TUNNEL-"ARCTIC CAT-RH 2 WHT | 1 | $5.51 | |
| 38 | 0621-115 | DECAL,TUNNEL-"ARCTIC CAT" LH 2 GRN | 1 | $5.65 | |
| 39 | 0621-186 | DECAL,TUNNEL-"ARCTIC CAT-RH 1 WHT | 1 | $20.63 | |
| 39 | 0621-113 | DECAL,TUNNEL-"ARCTIC CAT" LH 1 GRN | 1 | $89.95 | |
| 40 | 0621-990 | DECAL,REFLECTOR-RED | 1 | $15.11 | |
| 41 | 5611-853 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $2.47 | |
| 42 | 5611-852 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $2.47 | |
| 43 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 44 | 6606-623 | SNOWFLAP,SNO CROSS | 1 | $79.95 | |
| 45 | 8017-607 | SCREW,MACH-TSTRH 1/4-20 X 1/2 GR2 BLK Z | 1 | $3.16 | |
| 46 | 1623-242 | WASHER,BACKING-7MM IDX11/8OD-BLK | 1 | $2.47 | |
| 47 | 3604-157 | STRAP,SNOWFLAP RESTRAINT | 1 | $20.63 | |
| 48 | 1623-608 | NUT,PROPELLAR-1/4-20 X .300"BARREL | 1 | $2.06 | |
| 49 | 1623-022 | SCREW,48-2 TXSPNH 1/4-10X.625 Z&Y | 1 | $6.47 | |
| 50 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 51 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 52 | 1707-678 | BUMPER,REAR-RACE-PTD BLK | 1 | $142.95 | |
| 53 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 54 | 0623-562 | PLUG,HOLE-3/8 DIA-BLK | 1 | $1.37 | |
| 55 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 |
