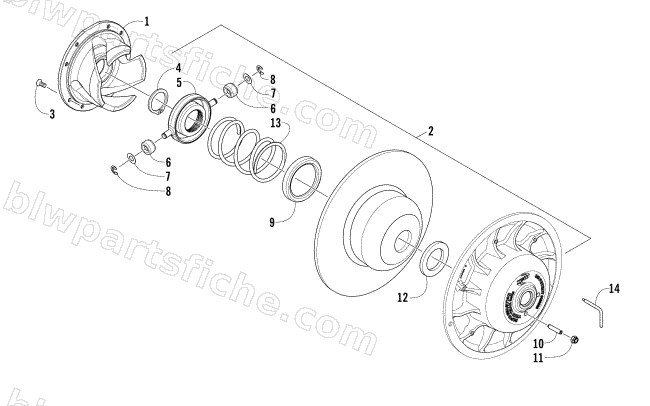

2012 Arctic Cat SNO PRO 600 — DRIVEN CLUTCH
2012 SNO PRO 600
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0726-329 | CLUTCH,DRIVEN-BLK/ORN-70-44-32/68-42-32 | 1 | $749.95 | |
| 1 | 0648-823 | CAM ASSY-TEAM L/W-70-44-32/68-42-32 | 1 | $286.95 | |
| 2 | 0726-330 | CLUTCH,DRIVEN-UNCALIB | 1 | $889.95 | |
| 3 | 0648-748 | SCREW,CAP-TSFH 1/4-28 X.625 (TI) | 1 | $2.95 | |
| 4 | 0648-771 | RING,RETAINING-EXTERNAL 1.375" | 1 | $15.11 | |
| 6 | 0648-699 | ROLLER,CLUTCH(TI) | 1 | $42.95 | |
| 7 | 0648-700 | WASHER,THRUST(TI) | 1 | $1.37 | |
| 8 | 0648-701 | RING,RETAINING-.375(TI) (R/B 0823-440) | 1 | $6.95 | |
| 9 | 0648-703 | WASHER,THRUST(TI) | 1 | $22.01 | |
| 10 | 0648-707 | SCREW,SET HEX SKT-1/4-20X1.25(TI) | 1 | $13.73 | |
| 11 | 0648-777 | NUT,FLEXLOCK-1/4-20 UNC (TEAM IND.) | 1 | $0.40 | |
| 12 | 0648-772 | SPACER,1.510 ID X 2.950 OD X .062 | 1 | $15.11 | |
| 13 | 0648-792 | SPRING,BLK/ORN-180/280 | 1 | $78.95 | |
| 14 | 0644-424 | TOOL,CLUTCH BELT ADJUST | 1 | $6.06 |
