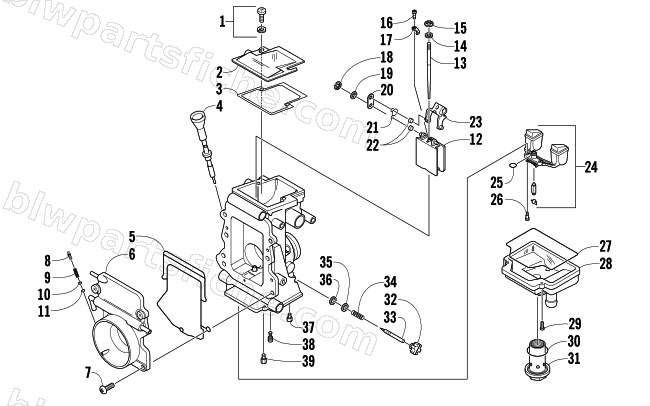

2012 Arctic Cat SNO PRO 600 — CARBURETOR - INTERNAL PARTS
2012 SNO PRO 600
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2670-258 | CARB,TM40-B421-SNO CROSS | 1 | $1,319.95 | |
| 1 | 6505-591 | SCREW | 1 | $1.64 | |
| 2 | 6506-142 | CAP, TOP | 1 | $53.95 | |
| 3 | 6506-034 | GASKET | 1 | $32.95 | |
| 4 | 6506-387 | PLUNGER,STARTER-TM40/134 | 1 | $22.01 | |
| 5 | 6506-209 | O-RING | 1 | $29.95 | |
| 6 | 6506-336 | FUNNEL,R/H-ASSY | 1 | $244.95 | |
| 6 | 6506-337 | FUNNEL,L/H-ASSY | 1 | $244.95 | |
| 7 | 6505-943 | SCREW | 1 | $2.79 | |
| 8 | 6506-220 | ADJUSTER | 1 | $17.87 | |
| 9 | 6506-217 | SPRING (C0) | 1 | $3.44 | |
| 10 | 6506-218 | WASHER | 1 | $1.37 | |
| 11 | 4505-011 | O-RING | 1 | $5.09 | |
| 12 | 6506-273 | PISTON VALVE ASSEMBLY 2.5 | 1 | $144.95 | |
| 13 | 6506-421 | JET NEEDLE-J8-9DFH12-54 | 1 | $32.95 | |
| 14 | 6505-552 | WASHER,E-RING PACKING | 1 | $1.23 | |
| 15 | 6505-628 | E-RING | 1 | $3.44 | |
| 16 | 6506-054 | RETAINING PLATE SCREW | 1 | $3.44 | |
| 17 | 6506-055 | PLATE, JET NEEDLE RETAINING | 1 | $7.95 | |
| 18 | 6506-051 | E-RING | 1 | $3.99 | |
| 19 | 6506-052 | WASHER | 1 | $2.47 | |
| 20 | 6506-039 | PLATE | 1 | $10.97 | |
| 21 | 6506-040 | CLIP | 1 | $17.87 | |
| 22 | 6506-053 | RING | 1 | $3.99 | |
| 23 | 6506-047 | LEVER ASSEMBLY | 1 | $92.95 | |
| 23 | 6506-043 | LEVER ASSEMBLY | 1 | $108.95 | |
| 24 | 6506-144 | FLOAT ASSY, 1.8 | 1 | $161.95 | |
| 25 | 6505-875 | O-RING | 1 | $1.64 | |
| 26 | 6506-037 | SCREW, FLOAT ARM | 1 | $3.85 | |
| 27 | 6506-038 | O-RING | 1 | $24.77 | |
| 28 | 6506-036 | FLOAT CHAMBER | 1 | $97.95 | |
| 29 | 6506-072 | SCREW | 1 | $1.37 | |
| 30 | 6505-185 | O-RING | 1 | $3.99 | |
| 31 | 6506-032 | DRAIN PLUG | 1 | $43.95 | |
| 32 | 6506-076 | CAP | 1 | $6.34 | |
| 33 | 6506-145 | ADJUSTER | 1 | $20.63 | |
| 34 | 6506-079 | SPRING | 1 | $3.99 | |
| 35 | 6506-078 | WASHER | 1 | $1.37 | |
| 36 | 6506-080 | WASHER | 1 | $2.06 | |
| 37 | 6506-101 | STARTER JET - 135 | 1 | $10.97 | |
| 38 | 6506-262 | JET, PILOT- 47.5 | 1 | $16.49 | |
| 39 | 6505-124 | JET MAIN 400 | 1 | $6.75 |
