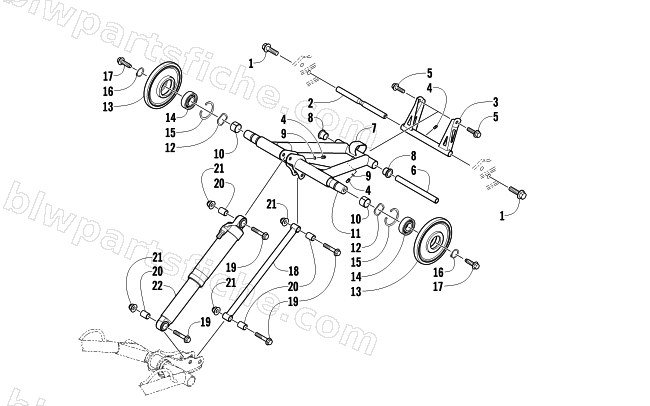

2012 Arctic Cat M 800 SNO PRO 162 — REAR SUSPENSION REAR ARM ASSEMBLY
2012 M 800 SNO PRO 162
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8408-826 | SCREW,CAP-HFH M8X1.25X25 CL8.8 W/2353 | 1 | $0.40 | |
| 2 | 3604-673 | AXLE,XBRC-HC-16.51X222.25 (M8X1.25) | 1 | $88.95 | |
| 3 | 2704-083 | ARM,REAR-10MM-GRN-FABR | 1 | $60.95 | |
| 3 | 2704-134 | ARM,REAR-10MM-ORN-FABR | 1 | $57.95 | |
| 4 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 5 | 8408-031 | SCREW,CAP-HFH M10X1.25X30 CL8.8 W/2353 | 1 | $2.06 | |
| 6 | 3604-638 | AXLE,ALUM-19.05 X 173.15-MACH | 1 | $56.95 | |
| 7 | 2704-081 | ARM,IDLER-10MM-GRN-FABR | 1 | $199.95 | |
| 7 | 2704-130 | ARM,IDLER-10MM-ORN-FABR | 1 | $192.95 | |
| 8 | 3604-028 | BUSHING, FLARED -BRONZE .735" x .751 ID | 1 | $3.57 | |
| 9 | 1623-011 | WASHER- GREASE FITTING | 1 | $0.68 | |
| 10 | 2604-852 | BEARING, 16DU12 | 1 | $10.97 | |
| 11 | 3604-636 | AXLE,INNER CARRIAGE | 1 | $124.95 | |
| 12 | 1623-692 | WASHER,WAVE-1.028X1.268X.028 | 1 | $2.47 | |
| 13 | 2604-699 | WHEEL, IDLER-6.38 (NO INSR) | 1 | $53.95 | |
| 14 | 0107-598 | BEARING,BALL-25MM | 1 | $12.35 | |
| 15 | 0123-798 | RING,INTERNAL-RETAINING | 1 | $1.64 | |
| 16 | 1623-690 | SNAP RING,EXTL-.925 ID | 1 | $1.09 | |
| 17 | 1623-836 | SCREW,CAP-HFH-M10X1.25X30-CL8.8-Z&Y-MPT | 1 | $2.75 | |
| 18 | 1704-683 | LINK,REAR SHOCK (GRN)-MACH | 1 | $92.95 | |
| 18 | 1704-684 | LINK,REAR SHOCK (ORN)-MACH | 1 | $92.95 | |
| 19 | 8408-045 | SCREW,CAP-HFH M10X1.25X45 CL8.8 Z&Y | 1 | $4.68 | |
| 20 | 3604-109 | SLEEVE,SHOCK EYELET-10mm ID | 1 | $4.40 | |
| 21 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 22 | 2704-183 | SHOCK,FLOAT 2-16"-REAR ARM-ASSY | 1 | $373.95 |
