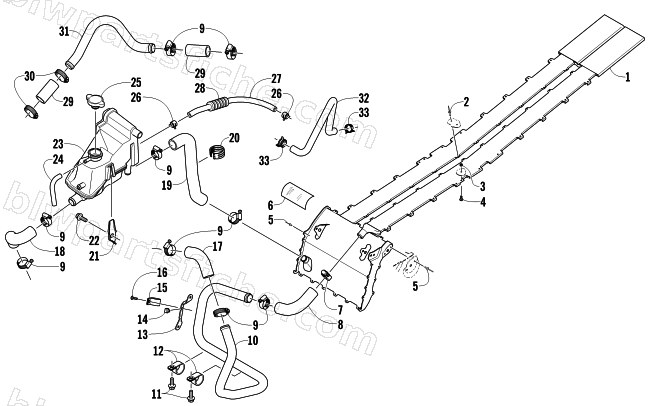

2012 Arctic Cat M 1100 SNO PRO 153 — COOLING ASSEMBLY
2012 M 1100 SNO PRO 153
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0713-043 | EXCH,HEAT-4 STRK 153"/162"-WELDT | 1 | $896.95 | |
| 2 | 8060-682 | RIVET,BLIND-DH SS62 ZINC | 1 | $0.12 | |
| 3 | 8422-502 | NUT, M5 X 0.8 NYLOC - YL ZN | 1 | $0.40 | |
| 4 | 8476-516 | SCREW,MACH-TSTRH M5X0.8X16 Z&Y | 1 | $1.37 | |
| 5 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 6 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 7 | 1623-092 | CLAMP,BAND-SAE #16 | 1 | $5.09 | |
| 8 | 0610-866 | HOSE,COOLANT-TUBE/EXCH | 1 | $13.73 | |
| 9 | 1623-230 | CLAMP,SCREW-#016 | 1 | $12.35 | |
| 10 | 0613-050 | TUBE,COOLANT-ENG/EXCH-FORMED | 1 | $39.95 | |
| 11 | 8409-017 | SCREW,CAP-HFH M10X1.25X16 CL10.9W/2353 | 1 | $1.92 | |
| 12 | 1623-916 | CLAMP,CABLE-1" INSUL-.406 MTG | 1 | $3.85 | |
| 13 | 0608-668 | BRKT,SUPPORT-COOLANT TUBE | 1 | $12.35 | |
| 14 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 15 | 0423-044 | CLAMP,TUBE-1" ARDEN(COV 1709 ZI) | 1 | $2.61 | |
| 17 | 0610-865 | HOSE,COOLANT-THERMO/TUBE | 1 | $12.35 | |
| 18 | 0610-849 | HOSE,COOLANT-ENGINE/TANK | 1 | $15.11 | |
| 19 | 0610-842 | HOSE,COOLANT-EXCH/TANK IN | 1 | $20.63 | |
| 20 | 0623-540 | TIE, CABLE-TRIPLE | 1 | $1.78 | |
| 21 | 0613-048 | BRKT,MTG-COOLANT TANK | 1 | $3.85 | |
| 22 | 8408-026 | SCREW,CAP-HFH M10X1.25X25 CL8.8 W/2353 | 1 | $3.85 | |
| 23 | 0613-072 | TANK,COOLANT/SEPERATOR-4 STRK NA | 1 | $196.95 | |
| 24 | 0610-818 | HOSE,GASLINE-FORMED-FILTER TO TANK | 1 | $15.11 | |
| 25 | 2606-284 | CAP, MINI RADIATOR | 1 | $32.95 | |
| 26 | 1623-278 | CLAMP,HOSE-SPRING (12W X 15) | 1 | $2.06 | |
| 27 | 0610-854 | HOSE,COOLANT-BYPASS-N/A | 1 | $12.35 | |
| 28 | 0619-776 | CONDUIT,FLEXIBLE-.62 ID-CTL 5' | 1 | $13.73 | |
| 29 | 0610-840 | HOSE,25.4mm DIA X 75mm-SAE J30 | 1 | $12.35 | |
| 30 | 3004-786 | CLAMP,M38 | 1 | $27.95 | |
| 31 | 0613-049 | TUBE,COOLANT-HEAD/PUMP-FORMED | 1 | $24.77 | |
| 32 | 0610-879 | HOSE,WATER BYPASS-NO.3 | 1 | $8.21 | |
| 33 | 3007-189 | CLIP,WATER BYPASS HOSE NO.3 | 1 | $5.37 |
