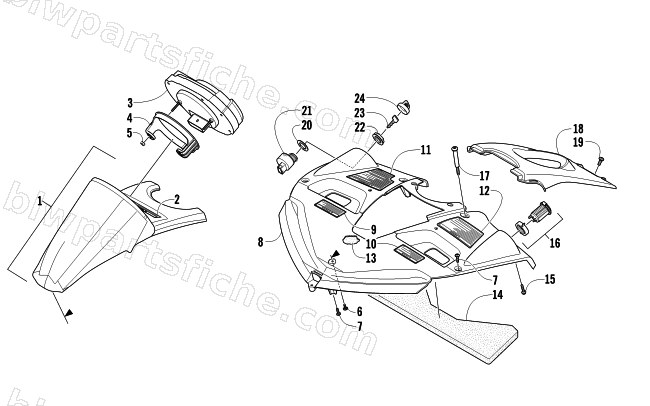

2012 Arctic Cat F5 LXR — CONSOLE ASSEMBLY
2012 F5 LXR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-212 | HOUSING,SPEEDO/TACH-BLK-W/DECAL | 1 | $38.95 | |
| 2 | 7611-572 | DECAL,WARNING-HANDLEBAR RISER | 1 | $53.95 | |
| 3 | 0620-361 | SPEEDO/TACH-PREMIUM-CALIBRATED(F/CFR | 1 | $752.95 | |
| 4 | 0620-322 | BRKT,RETAINER-SPEEDO/TACH | 1 | $9.59 | |
| 5 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 6 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 7 | 1623-618 | SCREW,PT THD-TSPNH K60-2.69X25MM RIE BLK | 1 | $6.06 | |
| 8 | 2718-763 | BASE,CONSOLE-BLK-W/DECALS (TOUR STD) | 1 | $137.95 | |
| 9 | 7611-574 | DECAL,CAUTION-FRENCH | 1 | $15.11 | |
| 10 | 7611-575 | DECAL,CAUTION-ENGLISH | 1 | $15.11 | |
| 11 | 8611-848 | DECAL, WARNING-FRENCH | 1 | $16.49 | |
| 12 | 8611-849 | DECAL, WARNING-ENGLISH | 1 | $16.49 | |
| 13 | 0617-558 | FOAM,CONSOLE-FRT | 1 | $30.95 | |
| 14 | 0617-559 | FOAM,CONSOLE-REAR | 1 | $30.95 | |
| 15 | 0623-785 | SCREW,SELF TAP-HWH #10-16 X 1 TYPE B Z&Y | 1 | $0.68 | |
| 16 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 17 | 1623-669 | SCREW,SHOULDER - TSTRH M6X 1.0 X 80 MM | 1 | $4.26 | |
| 18 | 4706-639 | CLOSE OFF,HANDLEBAR-BLK PTD CLEAR | 1 | $54.95 | |
| 19 | 0423-396 | SCREW,SELF TAP-TSPH M6-1.0X15 | 1 | $1.09 | |
| 20 | 0630-264 | WASHER,SPACER-IGNITION SWITCH | 1 | $0.95 | |
| 21 | 0609-910 | SWITCH,OPEN IGNITION-2012 | 1 | $68.95 | |
| 22 | 0430-050 | NUT,FLANGE-KEYSWITCH | 1 | $1.92 | |
| 23 | 0430-042 | KEY,IGNITION SERIES-Y (LH BLANK) | 1 | $5.92 | |
| 23 | 0430-043 | KEY,IGNITION SERIES-Z (RH BLANK) | 1 | $11.95 | |
| 24 | 0430-054 | COVER,KEY | 1 | $15.11 |
