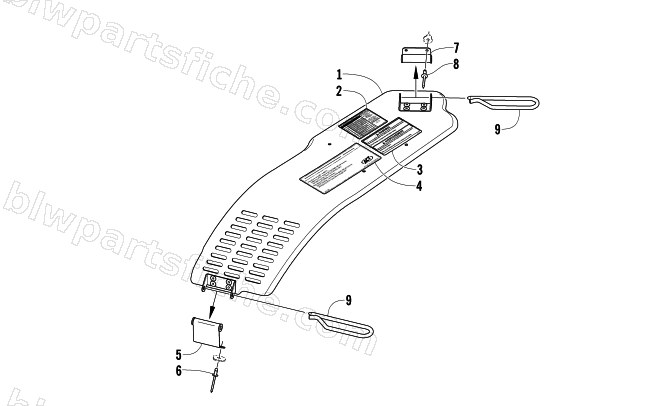

2012 Arctic Cat F5 LXR — BELT GUARD ASSEMBLY
2012 F5 LXR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1707-153 | GUARD,CLUTCH-ASSY | 1 | $291.95 | |
| 2 | 9611-057 | DECAL,EFI DIAGNOSTIC CODES-10 | 1 | $6.47 | |
| 3 | 1611-565 | DECAL,WARNING-GUARD | 1 | $1.92 | |
| 4 | 9611-681 | DECAL,CLUTCHING-2012 F5 LXR | 1 | $29.95 | |
| 5 | 1707-168 | HINGE, CLUTCH SHEILD-FRT-W/INSERTS | 1 | $15.11 | |
| 6 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 7 | 1707-169 | HINGE, CLUTCH SHIELD-REAR-W/INSERTS | 1 | $13.73 | |
| 8 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 9 | 1623-720 | PIN, CLUTCH GUARD | 1 | $16.49 |
