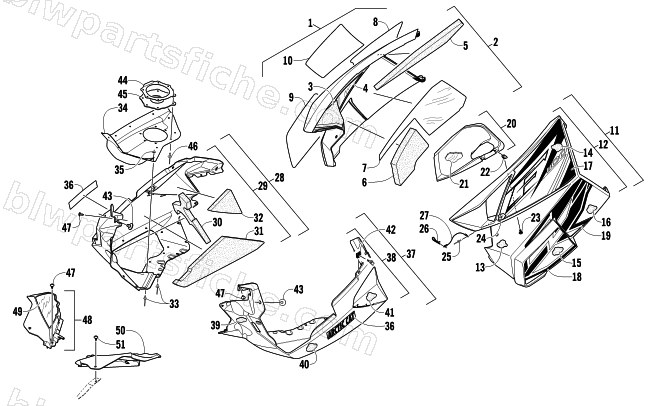

2012 Arctic Cat F 1100 SNO PRO — SKID PLATE AND SIDE PANEL ASSEMBLY
2012 F 1100 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3718-198 | PANEL,SIDE-RH W/DECALS(1100 F SP GRN) | 1 | $313.95 | |
| 1 | 3718-200 | PANEL,SIDE-RH W/DECALS(1100 F SP ORN) | 1 | $313.95 | |
| 2 | 3718-312 | PANEL,SIDE-RH WITH FOAM-BLK (4 STROKE) | 1 | $259.95 | |
| 3 | 0617-626 | FOAM,UPPER SIDE PANEL-FRT-RH | 1 | $4.26 | |
| 4 | 6606-414 | FOIL,PROTECTIVE-MIDDLE SIDE PANEL-RH | 1 | $1.92 | |
| 5 | 0617-628 | FOAM,UPPER SIDE PANEL-REAR-RH | 1 | $37.95 | |
| 6 | 0617-632 | FOAM,LWR SIDE PANEL-FRT-RH | 1 | $22.01 | |
| 7 | 6606-416 | FOIL,PROTECTIVE-LWR SIDE PANEL-REAR-RH | 1 | $3.57 | |
| 8 | 9611-530 | DECAL,SIDE PANEL-UPR RH-GRN-SP (1100) | 1 | $29.95 | |
| 8 | 9611-532 | DECAL,SIDE PANEL-UPR RH-ORN-SP (1100) | 1 | $29.95 | |
| 9 | 9611-574 | DECAL,SIDE PANEL-FWD-RH-GRN-SP | 1 | $26.95 | |
| 9 | 9611-580 | DECAL,SIDE PANEL-FWD-RH-ORN-SP | 1 | $54.95 | |
| 10 | 9611-572 | DECAL,SIDE PANEL-LWR-RH-GRN-SP | 1 | $57.95 | |
| 10 | 9611-578 | DECAL,SIDE PANEL-LWR-RH-ORN-SP | 1 | $46.95 | |
| 11 | 3718-199 | PANEL,SIDE-LH W/DECALS(1100 F SP GRN) | 1 | $313.95 | |
| 11 | 3718-201 | PANEL,SIDE-LH W/DECALS(1100 F SP ORN) | 1 | $313.95 | |
| 12 | 4718-101 | PANEL,SIDE-LH-W/FOAM-BLK | 1 | $267.95 | |
| 13 | 0617-631 | FOAM,MIDDLE SIDE PANEL-LH | 1 | $4.26 | |
| 14 | 0617-629 | FOAM,UPPER SIDE PANEL-REAR-LH | 1 | $16.49 | |
| 15 | 0617-633 | FOAM,LWR SIDE PANEL-FRT-LH | 1 | $22.01 | |
| 16 | 0617-635 | FOAM,LWR SIDE PANEL-REAR-LH | 1 | $12.35 | |
| 17 | 9611-531 | DECAL,SIDE PANEL-UPR LH-GRN-SP (1100) | 1 | $29.95 | |
| 17 | 9611-533 | DECAL,SIDE PANEL-UPR LH-ORN-SP (1100) | 1 | $29.95 | |
| 18 | 9611-575 | DECAL,SIDE PANEL-FWD-LH-GRN-SP | 1 | $26.95 | |
| 18 | 9611-581 | DECAL,SIDE PANEL-FWD-LH-ORN-SP | 1 | $57.95 | |
| 19 | 9611-573 | DECAL,SIDE PANEL-LWR-LH-GRN-SP | 1 | $57.95 | |
| 19 | 9611-579 | DECAL,SIDE PANEL-LWR-LH-ORN-SP | 1 | $44.95 | |
| 20 | 1702-279 | DUCT,AIR-CLUTCH W/FOIL | 1 | $42.95 | |
| 21 | 6606-462 | FOIL,CLUTCH DUCT-2 STROKE | 1 | $2.88 | |
| 22 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 23 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 24 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 25 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 26 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 27 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 28 | 3718-236 | PLATE,SKID-REAR RH W/DECAL | 1 | $333.95 | |
| 29 | 3718-234 | PLATE,SKID-REAR RH WITH FOAM | 1 | $360.95 | |
| 30 | 0617-636 | FOAM,SKID PLATE-FRT-RH | 1 | $37.95 | |
| 31 | 0617-638 | FOAM,SKID PLATE-MIDDLE-RH | 1 | $43.95 | |
| 32 | 0617-640 | FOAM,SKID PLATE-REAR-RH | 1 | $3.57 | |
| 33 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 34 | 1712-722 | DEFLECTOR,HEAT-PTD PWD CT BLK | 1 | $161.95 | |
| 35 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 36 | 9611-517 | DECAL,SKID PLATE-ARCTIC CAT | 1 | $10.97 | |
| 37 | 3718-237 | R/B 3718-235 | 1 | $117.95 | |
| 38 | 3718-235 | PLATE,SKID-REAR LH WITH FOAM | 1 | $110.95 | |
| 39 | 0617-637 | FOAM,SKID PLATE-FRT-LH | 1 | $16.49 | |
| 40 | 0617-639 | FOAM,SKID PLATE-MIDDLE-LH | 1 | $16.49 | |
| 41 | 0617-641 | FOAM,SKID PLATE-REAR-LH | 1 | $3.99 | |
| 42 | 1623-748 | CLIP, RECEPTACLE-1/4 TURN STUD | 1 | $5.65 | |
| 43 | 5606-639 | R/B 6606-592 | 1 | $18.95 | |
| 44 | 2612-685 | PLATE,EXHAUST-OUTLET | 1 | $58.95 | |
| 45 | 2612-669 | SEAL,EXHAUST OUTLET-4 STRK | 1 | $19.25 | |
| 46 | 8060-508 | RIVET,BLIND-DH SS56 BLK | 1 | $0.26 | |
| 47 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 48 | 3718-302 | PANEL,FILLER W/FOIL-RH | 1 | $19.25 | |
| 50 | 6606-343 | PANEL,FILLER-LH BLK | 1 | $19.25 | |
| 51 | 0623-784 | R/B 2623-163 | 1 | $0.35 |
