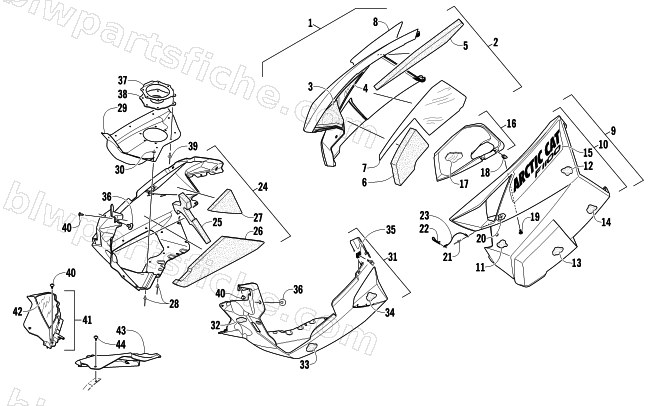

2012 Arctic Cat F 1100 SNO PRO LTD — SKID PLATE AND SIDE PANEL ASSEMBLY
2012 F 1100 SNO PRO LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3718-248 | PANEL,SIDE-RH W/DECALS-PC PRL WHT(F1100) | 1 | $296.95 | |
| 2 | 3718-246 | PANEL,SIDE-RH WITH FOAM-PC PRL WHT | 1 | $284.95 | |
| 3 | 0617-626 | FOAM,UPPER SIDE PANEL-FRT-RH | 1 | $4.26 | |
| 4 | 6606-414 | FOIL,PROTECTIVE-MIDDLE SIDE PANEL-RH | 1 | $1.92 | |
| 5 | 0617-628 | FOAM,UPPER SIDE PANEL-REAR-RH | 1 | $37.95 | |
| 6 | 0617-632 | FOAM,LWR SIDE PANEL-FRT-RH | 1 | $22.01 | |
| 7 | 6606-416 | FOIL,PROTECTIVE-LWR SIDE PANEL-REAR-RH | 1 | $3.57 | |
| 8 | 9611-620 | DECAL,SIDE PANEL-UPR RH-WHT (F1100 LTD) | 1 | $43.95 | |
| 9 | 3718-249 | PANEL,SIDE-LH W/DECALS-PC PRL WHT(F1100) | 1 | $252.95 | |
| 10 | 3718-335 | PANEL,SIDE-LH W/FOAM(LTD PC WHT) | 1 | $282.95 | |
| 11 | 0617-631 | FOAM,MIDDLE SIDE PANEL-LH | 1 | $4.26 | |
| 12 | 0617-629 | FOAM,UPPER SIDE PANEL-REAR-LH | 1 | $16.49 | |
| 13 | 0617-633 | FOAM,LWR SIDE PANEL-FRT-LH | 1 | $22.01 | |
| 14 | 0617-635 | FOAM,LWR SIDE PANEL-REAR-LH | 1 | $12.35 | |
| 15 | 9611-621 | DECAL,SIDE PANEL-UPR LH-WHT (F1100 LTD) | 1 | $43.95 | |
| 16 | 1702-279 | DUCT,AIR-CLUTCH W/FOIL | 1 | $42.95 | |
| 17 | 6606-462 | FOIL,CLUTCH DUCT-2 STROKE | 1 | $2.88 | |
| 18 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 19 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 20 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 21 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 22 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 23 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 24 | 3718-254 | PLATE,SKID-REAR RH WITH FOAM-PC PRL WHT | 1 | $457.95 | |
| 25 | 0617-636 | FOAM,SKID PLATE-FRT-RH | 1 | $37.95 | |
| 26 | 0617-638 | FOAM,SKID PLATE-MIDDLE-RH | 1 | $43.95 | |
| 27 | 0617-640 | FOAM,SKID PLATE-REAR-RH | 1 | $3.57 | |
| 28 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 29 | 1712-723 | DEFLECTOR,HEAT-PTD-PC PRL WHT | 1 | $421.95 | |
| 30 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 31 | 3718-255 | PLATE,SKID-REAR LH WITH FOAM-PC PRL WHT | 1 | $244.95 | |
| 32 | 0617-637 | FOAM,SKID PLATE-FRT-LH | 1 | $16.49 | |
| 33 | 0617-639 | FOAM,SKID PLATE-MIDDLE-LH | 1 | $16.49 | |
| 34 | 0617-641 | FOAM,SKID PLATE-REAR-LH | 1 | $3.99 | |
| 35 | 1623-748 | CLIP, RECEPTACLE-1/4 TURN STUD | 1 | $5.65 | |
| 36 | 5606-639 | R/B 6606-592 | 1 | $18.95 | |
| 37 | 2612-685 | PLATE,EXHAUST-OUTLET | 1 | $58.95 | |
| 38 | 2612-669 | SEAL,EXHAUST OUTLET-4 STRK | 1 | $19.25 | |
| 39 | 8060-488 | RIVET,BLIND-DH SS56 ZINC | 1 | $0.40 | |
| 40 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 41 | 3718-302 | PANEL,FILLER W/FOIL-RH | 1 | $19.25 | |
| 42 | 6606-404 | FOIL,PROTECTIVE-FILLER PANEL-RH | 1 | $2.61 | |
| 43 | 6606-343 | PANEL,FILLER-LH BLK | 1 | $19.25 | |
| 44 | 0623-784 | R/B 2623-163 | 1 | $0.35 |
