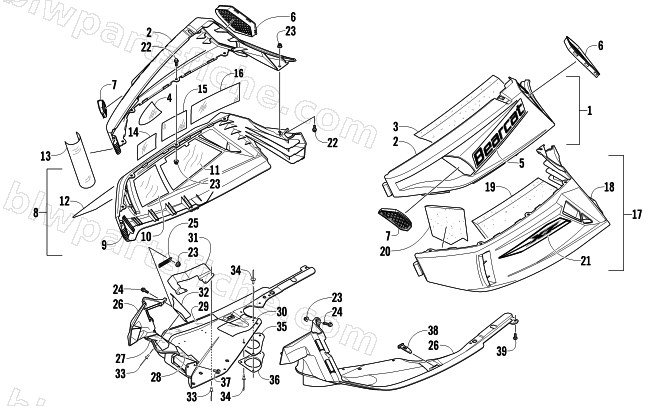

2012 Arctic Cat BEARCAT Z1 XT LTD — SKID PLATE AND SIDE PANEL ASSEMBLY
2012 BEARCAT Z1 XT LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3718-376 | PANEL,SIDE-RH-UPPER W/DECALS | 1 | $275.95 | |
| 1 | 3718-377 | PANEL,SIDE-LH-UPPER W/DECALS | 1 | $275.95 | |
| 2 | 3718-126 | PANEL,SIDE-UPR-RH-DESERT RED W/O DECALS | 1 | $353.95 | |
| 2 | 3718-127 | PANEL,SIDE-UPR-LH-DESERT RED W/O DECALS | 1 | $307.95 | |
| 3 | 0617-562 | FOAM,UPR SIDE PANEL-RH | 1 | $46.95 | |
| 3 | 0617-563 | FOAM,UPR SIDE PANEL-LH | 1 | $16.49 | |
| 4 | 0637-318 | KIT,UPDATE-PROT FOIL | 1 | $2.95 | |
| 5 | 9611-454 | DECAL,UPPER PANEL-DESERT RED | 1 | $8.21 | |
| 6 | 4606-650 | VENT,UPR PANEL-REAR RH-MOLD BLK | 1 | $26.95 | |
| 6 | 4606-651 | VENT,UPR PANEL-REAR LH-MOLD BLK | 1 | $26.95 | |
| 7 | 4606-662 | VENT,UPR PANEL-RH HONEYCOMB-MOLD BLK | 1 | $20.63 | |
| 7 | 4606-663 | VENT,UPR PANEL-LH HONEYCOMB-MOLD BLK | 1 | $20.63 | |
| 8 | 3718-378 | PANEL,SIDE-RH-LOWER W/DECALS | 1 | $331.95 | |
| 9 | 2718-930 | PANEL,SIDE-LWR RH W/O DECALS-BLK | 1 | $291.95 | |
| 10 | 6606-212 | FOIL,PROTECTIVE-RH SIDE PANEL-LWR FRT | 1 | $2.75 | |
| 11 | 6606-214 | FOIL,PROTECTIVE-RH SIDE PANEL-LWR REAR | 1 | $5.09 | |
| 12 | 9611-456 | DECAL,LOWER PANEL-RH-DESERT RED | 1 | $19.25 | |
| 13 | 6606-456 | FOIL,PROTECTIVE-178X115 | 1 | $2.75 | |
| 14 | 6606-219 | FOIL,PROTECTIVE-127X191 | 1 | $4.54 | |
| 15 | 6606-218 | FOIL,PROTECTIVE-102X152 | 1 | $3.44 | |
| 16 | 6606-220 | FOIL,PROTECTIVE-127X343 | 1 | $6.34 | |
| 17 | 3718-379 | PANEL,SIDE-LH-LOWER W/DECALS | 1 | $287.95 | |
| 18 | 2718-349 | PANEL,SIDE-LWR LH W/O DECALS-BLK | 1 | $298.95 | |
| 19 | 0617-567 | FOAM,LWR SIDE PANEL- REAR LH (19mm THK) | 1 | $93.95 | |
| 20 | 0617-566 | FOAM,LWR SIDE PANEL-FRT LH(19mm THK) | 1 | $16.49 | |
| 21 | 9611-457 | DECAL,LOWER PANEL-LH-DESERT RED | 1 | $19.25 | |
| 22 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 23 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 24 | 8408-635 | SCREW,CAP-HFH M6X1.0X35 CL8.8 Z&Y | 1 | $0.68 | |
| 25 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 26 | 4706-772 | PLATE,SKID-BLK RH-ROUTED | 1 | $54.95 | |
| 26 | 4706-073 | PLATE, SKID-LH-BLK-ROUTED-F/C | 1 | $57.95 | |
| 27 | 4606-796 | FOIL,PROTECTIVE-RH SKID PLATE-UPR FRT | 1 | $1.64 | |
| 28 | 6606-453 | FOIL,PROTECTIVE-SKID PLATE-FRONT | 1 | $2.88 | |
| 29 | 4606-798 | FOIL,PROTECTIVE-RH SKID PLATE-OUTER | 1 | $2.47 | |
| 30 | 4606-797 | FOIL,PROTECTIVE-RH SKID PLATE-CENTER | 1 | $4.26 | |
| 31 | 6606-227 | SHIELD,HEAT-SKID PLATE-RH | 1 | $26.95 | |
| 32 | 6606-423 | SHIELD,HEAT-HINGE | 1 | $12.35 | |
| 33 | 8061-506 | RIVET,BLIND-LF SS54 BLACK | 1 | $0.95 | |
| 34 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 35 | 2612-469 | SEAL,EXHAUST-OUTLET-4 STRK | 1 | $15.11 | |
| 36 | 1712-594 | SHIELD,HEAT-EXHAUST OUTLET-PTD | 1 | $30.95 | |
| 37 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 38 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 | |
| 39 | 0423-538 | SCREW,TAPTITE-TSPNH M6 X 1 X 16 Z&B | 1 | $0.68 |
