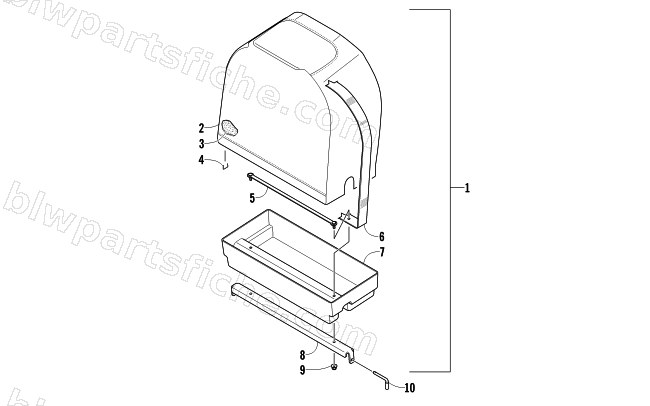

2012 Arctic Cat BEARCAT Z1 XT LTD — CENTER PASSENGER SEAT ASSEMBLY
2012 BEARCAT Z1 XT LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5706-008 | SEAT,CENTER-XT-ASSY | 1 | $333.95 | |
| 2 | 5706-009 | COVER,SEAT-CENTER-BCXT | 1 | $106.95 | |
| 3 | 4706-227 | FOAM,SEAT-3 UP-BCWT | 1 | $65.95 | |
| 4 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 5 | 4706-226 | PLATE,BACKING-W/STUDS | 1 | $74.95 | |
| 6 | 4706-579 | STRAP,HOLD DOWN-ACCY | 1 | $3.02 | |
| 7 | 5606-552 | SEAT BASE - 3 UP | 1 | $82.95 | |
| 8 | 4706-228 | BRKT,MTG-SEAT BASE-PTD BLK | 1 | $32.95 | |
| 9 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 10 | 0541-447 | PINS,SPEEDRACK-SS-ASSY | 1 | $16.49 |
