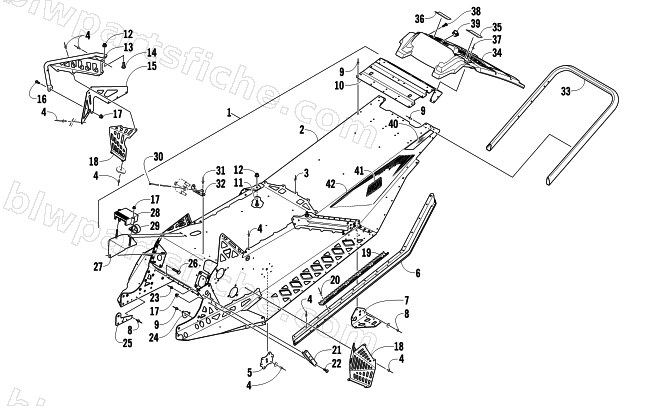

2012 Arctic Cat ARCTIC CAT SNO PRO 500 — CHASSIS, REAR BUMPER, AND SNOWFLAP ASSEMBLY
2012 ARCTIC CAT SNO PRO 500
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1707-463 | CHASSIS,ASSY | 1 | $2,962.95 | |
| 2 | 1607-053 | TUNNEL,REAR | 1 | $286.95 | |
| 3 | 8061-682 | RIVET,BLIND-LF SD62BSLF ZINC | 1 | $0.95 | |
| 4 | 1623-130 | RIVET,3/16 HUCK-M4 | 1 | $1.64 | |
| 5 | 1607-090 | PLATE,BACKING-FRT ARM | 1 | $8.21 | |
| 6 | 5606-848 | ROLL,TUNNEL-FORMED-RH | 1 | $89.95 | |
| 6 | 5606-849 | ROLL,TUNNEL-FORMED-LH | 1 | $89.95 | |
| 7 | 4706-834 | BRKT,SUSPENSION MTG-RH REAR PTD BLK | 1 | $37.95 | |
| 7 | 4706-835 | BRKT,SUSPENSION MTG-LH REAR PTD BLK | 1 | $37.95 | |
| 8 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 9 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 10 | 1607-054 | PLATE,REAR TUNNEL-CLOSE OFF | 1 | $192.95 | |
| 11 | 8476-835 | SCREW,MACH-TSTRH M8X1.25X35 Z&Y | 1 | $3.59 | |
| 12 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 13 | 4706-514 | HOOK,TOE-RH PTD BLK | 1 | $73.95 | |
| 13 | 4706-515 | HOOK,TOE-LH PTD BLK | 1 | $73.95 | |
| 14 | 8476-820 | SCREW,MACH-TSTRH M8X1.25X20 Z&Y | 1 | $0.95 | |
| 15 | 4706-510 | GUSSET,TOE STOP-RH PTD BLK | 1 | $42.95 | |
| 15 | 4706-511 | GUSSET,TOE STOP-LH PTD BLK | 1 | $42.95 | |
| 16 | 8476-630 | SCREW,MACH-TSTRH M6X1.0X30 Z&Y | 1 | $1.09 | |
| 17 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 18 | 4706-516 | SHIELD,TOE-RH PTD BLK | 1 | $69.95 | |
| 18 | 4706-517 | SHIELD,TOE-LH PTD BLK | 1 | $69.95 | |
| 19 | 4706-307 | PLATE,GRIP-PTD GRN | 1 | $51.95 | |
| 20 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 21 | 0608-585 | BRKT,SNUBBER-CHASSIS-MACH | 1 | $23.39 | |
| 22 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 23 | 1623-206 | RIVET,3/16 HUCK-M9 | 1 | $2.06 | |
| 24 | 5606-672 | PLATE,BACKING-PTO MTG-Z&Y | 1 | $13.73 | |
| 25 | 5606-628 | BRACE,SUPPORT-INNER-Z&Y | 1 | $33.95 | |
| 26 | 1623-020 | BOLT,RIB CAR-5/16-18X1.62 | 1 | $20.63 | |
| 27 | 4706-794 | PANEL,ELECTRICAL-MFG ASSY | 1 | $17.87 | |
| 28 | 0630-323 | REGULATOR/RECTIFIER | 1 | $183.95 | |
| 29 | 3008-040 | CLAMP, HEAT SENSOR,M12 | 1 | $1.92 | |
| 30 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 31 | 8060-682 | RIVET,BLIND-DH SS62 ZINC | 1 | $0.12 | |
| 32 | 5606-536 | BRKT,MTG-COIL | 1 | $24.77 | |
| 33 | 4706-882 | BUMPER,REAR-PTD GRN | 1 | $56.95 | |
| 34 | 5606-525 | SNOWFLAP,LONG-INJ MOLD | 1 | $124.95 | |
| 35 | 5611-853 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $2.47 | |
| 36 | 5611-852 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $2.47 | |
| 37 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 38 | 1623-343 | CLIP, X-MAS TREE | 1 | $1.78 | |
| 39 | 5606-988 | PLUG,HOLE-1 INCH | 1 | $1.37 | |
| 40 | 8611-676 | DECAL,REFLECTOR-RED RH | 1 | $20.63 | |
| 40 | 8611-677 | DECAL,REFLECTOR-RED LH | 1 | $20.63 | |
| 41 | 7611-150 | DECAL,APV OIL | 1 | $22.01 | |
| 42 | 9611-496 | DECAL,TUNNEL-RH | 1 | $27.95 | |
| 42 | 9611-497 | DECAL,TUNNEL-LH | 1 | $27.95 |
