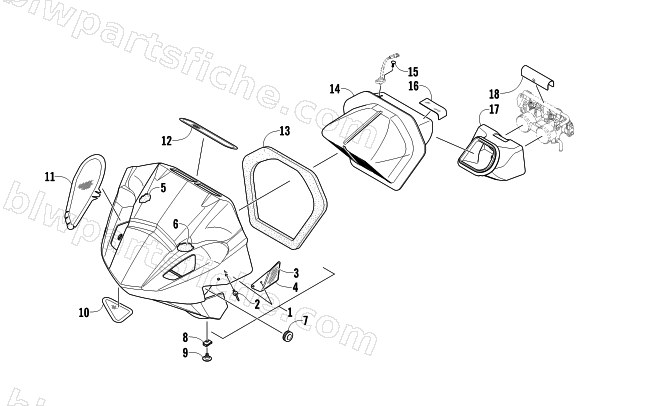

2012 Arctic Cat ARCTIC CAT SNO PRO 500 — AIR SILENCER ASSEMBLY
2012 ARCTIC CAT SNO PRO 500
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3718-083 | BUMPER,FRT/AIR SILENCER-W/FOAM | 1 | $412.95 | |
| 2 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 3 | 9611-390 | DECAL,REFLECTOR-AMBER RH | 1 | $22.01 | |
| 3 | 9611-391 | DECAL,REFLECTOR-AMBER LH | 1 | $22.01 | |
| 4 | 6606-264 | BRKT,MTG-REFLECTOR-RH | 1 | $8.21 | |
| 4 | 6606-265 | BRKT,MTG-REFLECTOR-LH | 1 | $8.21 | |
| 5 | 0617-612 | FOAM,AIR SILENCER-UPR RH | 1 | $15.11 | |
| 5 | 0617-613 | FOAM,AIR SILENCER-UPR LH | 1 | $15.11 | |
| 6 | 0617-610 | FOAM,FRT BUMPER/AIR-SIDE RH | 1 | $19.25 | |
| 6 | 0617-611 | FOAM,FRT BUMPER/AIR-SIDE LH | 1 | $19.25 | |
| 7 | 1623-256 | GROMMET,RUBBER-.63"ID X 1.13"OD X .19"GR | 1 | $3.99 | |
| 8 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 9 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 10 | 5606-840 | SCREEN,AIR SILENCER-LWR RH | 1 | $33.95 | |
| 10 | 5606-841 | SCREEN,AIR SILENCER-LWR LH | 1 | $33.95 | |
| 11 | 5606-838 | SCREEN,AIR SILENCER-UPR RH | 1 | $33.95 | |
| 11 | 5606-839 | SCREEN,AIR SILENCER-UPR LH | 1 | $33.95 | |
| 12 | 5606-826 | SCREEN,AIR SILENCER-UPPER | 1 | $33.95 | |
| 13 | 0617-594 | FOAM,SEAL-AIR SILENCER INTAKE | 1 | $23.39 | |
| 14 | 6606-161 | INTAKE,AIR SILENCER-EFI | 1 | $522.95 | |
| 15 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 16 | 2606-554 | FOIL,PROTECTIVE-3" X 4" | 1 | $3.44 | |
| 17 | 2670-112 | EXTENSION,INTAKE-EFI 500 AA | 1 | $142.95 | |
| 18 | 5706-069 | WRAP,THROTTLE BODY | 1 | $124.95 |
