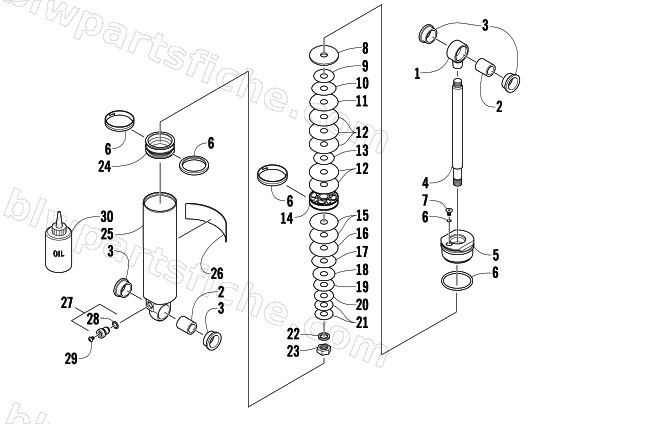

2011 Arctic Cat Z1 TURBO LXR LTD — REAR SUSPENSION REAR ARM SHOCK ABSORBER
2011 Z1 TURBO LXR LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2704-180 | SHOCK,REAR ARM-2" BORE-F8 SP | 1 | $269.95 | |
| 1 | 0604-893 | EYELET, SHOCK(FOX ONLY) | 1 | $81.95 | |
| 2 | 2604-223 | SLEEVE, .571 X .815 X .950TLG | 1 | $33.95 | |
| 3 | 1604-222 | BUSHING,REAR ARM SHOCK-.125" LIP | 1 | $17.87 | |
| 4 | 2604-622 | SHAFT,SHOCK-.498 X 7.260 | 1 | $149.95 | |
| 5 | 2604-627 | BEARING,ENDCAP-.498"X2"OD - W/BLEED-ASSY | 1 | $124.95 | |
| 6 | 2604-880 | SEAL/BEARING-REBUILD KIT-803-00-108 | 1 | $71.95 | |
| 7 | 2604-530 | SCREW,MACH-HSFH 10-24X.375 SS-ASSY | 1 | $3.95 | |
| 8 | 2603-466 | WASHER,TOPOUT-1.570ODX.378IDX.093TH | 1 | $17.87 | |
| 9 | 0603-340 | VALVE,1.000X.008(3/8ID) | 1 | $12.95 | |
| 10 | 0603-350 | VALVE,1.300X.010(3/8ID) | 1 | $17.95 | |
| 11 | 2604-647 | VALVE,1.425 X .010 (3/8ID) | 1 | $12.95 | |
| 12 | 2604-631 | VALVE,1.600 X .010 (3/8ID) | 1 | $16.95 | |
| 13 | 0603-339 | VALVE,1.000X.006(3/8ID) | 1 | $6.89 | |
| 14 | 2604-645 | PISTON,DAMPING-1.834 BORE .055 ORIFACE | 1 | $71.95 | |
| 15 | 2604-633 | VALVE,1.425 X .015 (3/8ID) | 1 | $12.95 | |
| 16 | 2604-632 | VALVE,1.425 X .012 (3/8ID) | 1 | $12.95 | |
| 17 | 0603-891 | VALVE, SHOCK 1.300 X.012 | 1 | $12.95 | |
| 18 | 0603-882 | VALVE, SHOCK 1.100 X.012(3/8ID) | 1 | $12.95 | |
| 19 | 0603-881 | VALVE, SHOCK 1.000 X.012(3/8ID) | 1 | $6.95 | |
| 20 | 0603-886 | VALVE, SHOCK .900 X.015 | 1 | $14.95 | |
| 21 | 0603-885 | VALVE, SHOCK .800 X.015 | 1 | $6.95 | |
| 22 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 23 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 24 | 2604-886 | PISTON,IFP- 1.834" NO BLEED-ASSY | 1 | $128.95 | |
| 25 | 2604-621 | BODY,ALUM-IMP EXTR (1.834BORE/9.233TLG | 1 | $372.95 | |
| 26 | 2604-889 | DECAL,SHOCK BODY-ZERO PRO-6.250X1.750 | 1 | $38.95 | |
| 27 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 28 | 1604-318 | O-RING-END CAP FITTING(FOX ONLY) | 1 | $11.95 | |
| 29 | 0624-097 | SCREW, MACH HSBH #8-32X.25 (SS) | 1 | $0.85 | |
| 30 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
