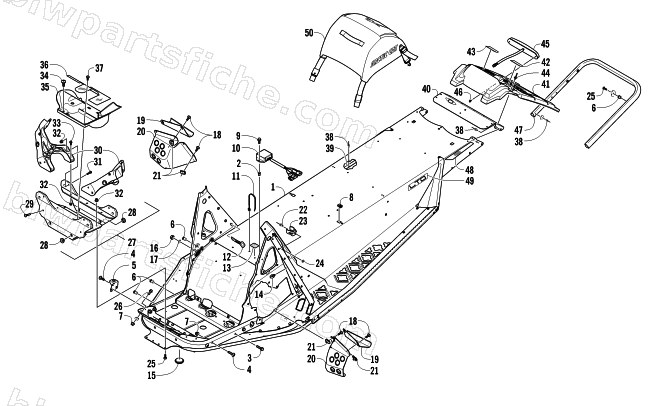

2011 Arctic Cat Z1 TURBO LXR LTD — CHASSIS, REAR BUMPER, AND SNOWFLAP ASSEMBLY
2011 Z1 TURBO LXR LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1707-416 | CHASSIS,ASSY-4 STROKE-W/ INSERTS-PTD BLK | 1 | $2,893.95 | |
| 2 | 1623-797 | INSERT,M5X0.8-AL SERIES ALS4-580-3.3 | 1 | $3.16 | |
| 3 | 1623-428 | SCREW,CAP-HFH M8 X 1.25 X 40 TRILOBE Z&Y | 1 | $4.95 | |
| 4 | 8476-835 | SCREW,MACH-TSTRH M8X1.25X35 Z&Y | 1 | $3.59 | |
| 5 | 1712-139 | BRKT, RESONATOR MTG-PTD | 1 | $26.95 | |
| 6 | 0423-391 | INSERT,M6X1.0-AL SERIES ALS4-610-4.2 | 1 | $3.57 | |
| 7 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 8 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 9 | 8408-516 | SCREW,CAP-HFH M5X0.8X16 CL8.8 Z&Y | 1 | $1.64 | |
| 10 | 0630-255 | REGULATOR, 3 PHASE-40A DC | 1 | $188.95 | |
| 11 | 0623-677 | CABLE TIE,PUSH MOUNT-X MAS CLIP | 1 | $1.09 | |
| 12 | 4606-454 | STRAP,HOLDDOWN-UPR PANEL-RH | 1 | $4.68 | |
| 12 | 4606-455 | STRAP,HOLDDOWN-UPR PANEL-LH | 1 | $4.68 | |
| 13 | 2606-007 | FOIL, PROTECTIVE | 1 | $1.78 | |
| 14 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 | |
| 15 | 1623-625 | PLUG,CENTER PAN | 1 | $1.09 | |
| 16 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 17 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 18 | 8471-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 Z&B | 1 | $0.68 | |
| 19 | 3706-504 | BRKT,TOE HOOK-RH-PTD BLK | 1 | $20.63 | |
| 19 | 3706-505 | BRKT,TOE HOOK-LH-PTD BLK | 1 | $20.63 | |
| 20 | 3706-502 | SHIELD,TOE-RH-PTD BLK | 1 | $69.95 | |
| 20 | 3706-503 | SHIELD,TOE-LH-PTD BLK | 1 | $69.95 | |
| 21 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 22 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 23 | 1670-826 | BRKT,FUEL FILTER-F3 | 1 | $6.34 | |
| 24 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 25 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 26 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 27 | 1707-340 | BRKT,FRT SUSP MTG-W/BUSHINGS | 1 | $359.95 | |
| 28 | 0605-763 | BUSHING,LWR A-ARM | 1 | $3.44 | |
| 29 | 1623-443 | BOLT, RIBBED NECK M6 X 35 Z&Y | 1 | $1.78 | |
| 30 | 0607-806 | FRAME, UPPER-SHOCK MTG-RH | 1 | $128.95 | |
| 30 | 0607-807 | FRAME, UPPER-SHOCK MTG-LH | 1 | $128.95 | |
| 31 | 8408-625 | SCREW,CAP-HFH M6X1.0X25 CL8.8 Z&Y | 1 | $0.54 | |
| 32 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 33 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 34 | 0423-557 | SCREW,SHLDR-TSPH M6-1.0X18MM Z&Y W/2353 | 1 | $0.68 | |
| 35 | 4606-308 | CLOSE OFF,COVER-FRONT END | 1 | $19.25 | |
| 36 | 5606-596 | FOIL,CLOSE OFF PANEL | 1 | $5.95 | |
| 37 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 38 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 39 | 6606-056 | SUPPORT, TUNNEL-RH | 1 | $45.95 | |
| 40 | 4706-667 | ENDCAP,TUNNEL-PTD BLK | 1 | $33.95 | |
| 41 | 4706-547 | SNOWFLAP,SHORT-'09 CF | 1 | $82.95 | |
| 42 | 5611-852 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $2.47 | |
| 43 | 5611-853 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $2.47 | |
| 44 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 45 | 0609-863 | TAILLIGHT,LED-1.5" X 9.5" (10" LEAD)RED | 1 | $112.95 | |
| 46 | 0623-301 | SCREW,SELF TAP-HWH 10X1/2 AB Z&Y | 1 | $0.12 | |
| 47 | 4706-666 | BUMPER,REAR-W/INSERTS-PTD BLK | 1 | $126.95 | |
| 48 | 8611-720 | DECAL,REFLECTOR-RED-RH | 1 | $30.95 | |
| 48 | 8611-721 | DECAL,REFLECTOR-RED-LH | 1 | $30.95 | |
| 49 | 9611-308 | DECAL,TUNNEL-LTD | 1 | $22.01 | |
| 50 | 6606-241 | SADDLEBAG,REAR | 1 | $133.95 |
