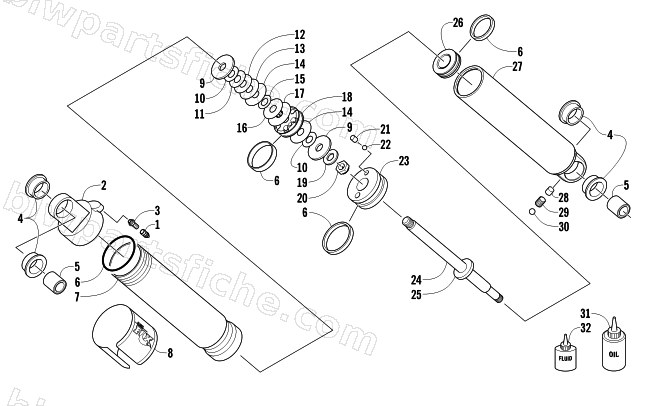

2011 Arctic Cat Z1 TURBO EXT — FRONT SUSPENSION SHOCK ABSORBER
2011 Z1 TURBO EXT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2703-614 | SHOCK, SKI - 17.20" FLOAT ASSY | 1 | $864.95 | |
| 0 | 2703-577 | SHOCK,SKI-ZERO PRO-17.15" | 1 | $438.95 | |
| 1 | 2603-327 | CAP,VALVE-AIR - (FOX) | 1 | $12.35 | |
| 2 | 3604-319 | END CAP,AIR SLEEVE-ASSY | 1 | $314.95 | |
| 3 | 2603-511 | VALVE,AIR-LOW TEMP (FOX) | 1 | $32.95 | |
| 3 | 0603-910 | EYELET,SHOCK-FR SUSP(FOX ONLY) | 1 | $97.95 | |
| 4 | 1604-222 | BUSHING,REAR ARM SHOCK-.125" LIP | 1 | $17.87 | |
| 4 | 2603-416 | SHAFT,SHOCK-.498 X 8.850" | 1 | $143.95 | |
| 5 | 2604-223 | SLEEVE, .571 X .815 X .950TLG | 1 | $33.95 | |
| 5 | 2603-459 | BUMPER,FOX SHOCK - 1" | 1 | $44.95 | |
| 6 | 2604-796 | KIT,REBUILD-SEAL/BEARING-FLOAT | 1 | $152.95 | |
| 6 | 2604-812 | BEARING,ENDCAP -.498" X .960"-ASSY | 1 | $194.95 | |
| 7 | 2603-412 | SLEEVE,AIR-ASSY-8.415"-(FLOAT) | 1 | $306.95 | |
| 7 | 2604-815 | SEAL/BEARING-REBUILD KIT | 1 | $92.95 | |
| 8 | 2603-610 | DECAL,FOX FLOAT-2006 | 1 | $38.95 | |
| 8 | 2603-862 | SPACER,SHAFT-.504 X 1.250 X .625 | 1 | $47.95 | |
| 9 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 10 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 11 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 12 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 13 | 0603-344 | VALVE,1.100X.010(3/8ID) | 1 | $12.95 | |
| 14 | 0603-347 | VALVE,1.250X.010(3/8ID) | 1 | $13.95 | |
| 14 | 0603-346 | VALVE,1.250X.008(3/8ID) | 1 | $6.95 | |
| 15 | 0603-331 | VALVE, .700X.008(3/8ID) | 1 | $6.95 | |
| 16 | 0603-343 | VALVE,1.100X.008(3/8ID) | 1 | $6.95 | |
| 16 | 0603-348 | VALVE,1.300X.006(3/8ID) | 1 | $13.95 | |
| 17 | 0603-349 | VALVE,1.300X.008(3/8ID) | 1 | $13.95 | |
| 18 | 2604-412 | PISTON,.055 DIA HOLE | 1 | $58.95 | |
| 19 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 20 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 21 | 1603-940 | SCREW-SET,8-32X.250 | 1 | $1.95 | |
| 21 | 2604-816 | PISTON,FLOATING-ASSY | 1 | $116.95 | |
| 22 | 1604-315 | BALL, BLEED | 1 | $4.95 | |
| 22 | 1604-316 | SCREW, RELIEF W/ O-RING | 1 | $4.95 | |
| 23 | 2603-333 | BEARING,ENDCAP- ASSY- 1.750 OD - (FLOAT) | 1 | $153.95 | |
| 23 | 1604-425 | O-RING(FOX ONLY) | 1 | $4.95 | |
| 24 | 3604-508 | SHAFT,SHOCK-.498 X 8.65 TLG | 1 | $122.95 | |
| 24 | 2603-245 | RETAINER,.062 CS X 1.54 OD-WEAR SLEEVE | 1 | $6.89 | |
| 25 | 0603-386 | BUMPER,INTERNAL | 1 | $26.95 | |
| 25 | 2603-246 | GUIDE,SPRING-ALUM BODY | 1 | $26.95 | |
| 26 | 2603-417 | PISTON,IFP FLOAT-ASSY | 1 | $44.95 | |
| 26 | 2604-840 | RING,PRELOAD-2.40 OD X .600 TLG | 1 | $50.95 | |
| 27 | 3604-507 | BODY,FLOAT SHOCK-1.459" BORE X 8.425" | 1 | $562.95 | |
| 27 | 2604-841 | RING,PRELOAD LOCK-2.40 OD X .300 TLG | 1 | $50.95 | |
| 28 | 1604-428 | PLUG, RUBBER - VALVE | 1 | $13.73 | |
| 28 | 2604-897 | DECAL,SHOCK-ZERO PRO 5.1X1.375(2005) | 1 | $23.39 | |
| 29 | 2603-338 | SCREW,SET-3/8-24 X .25" | 1 | $15.11 | |
| 29 | 2603-839 | BODY,SHOCK-1.459 BORE X 8.900 TLG | 1 | $228.95 | |
| 30 | 2603-337 | BALL,AIR VALVE (.219 OD) - (FLOAT) | 1 | $7.16 | |
| 30 | 2604-817 | BODY,CAP-ALUM BODY-ASSY | 1 | $164.95 | |
| 31 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 | |
| 31 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 32 | 4639-012 | FLOAT FLUID,FOX RACING SHOX-8 OZ | 1 | $18.95 | |
| 32 | 1604-318 | O-RING-END CAP FITTING(FOX ONLY) | 1 | $11.95 | |
| 33 | 0624-097 | SCREW, MACH HSBH #8-32X.25 (SS) | 1 | $0.85 |
