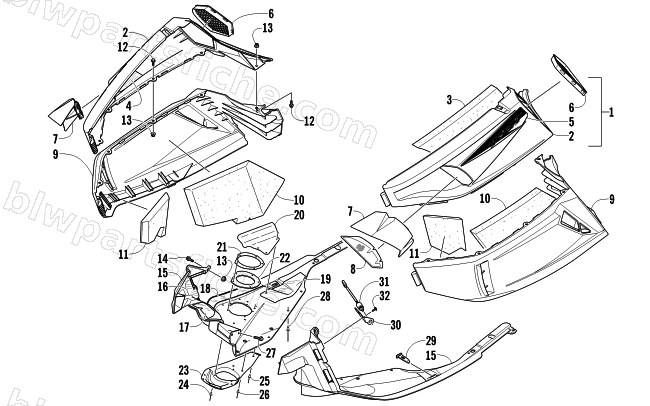

SKID PLATE AND SIDE PANEL ASSEMBLY
2011 TZ1 TURBO LXR LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3718-064 | PANEL,SIDE-UPR-RH W/DECALS | 1 | $292.95 | |
| 1 | 3718-065 | PANEL,SIDE-UPR-LH W/DECALS | 1 | $324.95 | |
| 2 | 3718-078 | PANEL,SIDE-UPPER RH W/O DECALS-WHT | 1 | $274.95 | |
| 2 | 3718-055 | PANEL,SIDE-UPR-LH W/O DECALS | 1 | $274.95 | |
| 3 | 0617-562 | FOAM,UPR SIDE PANEL-RH | 1 | $46.95 | |
| 3 | 0617-563 | FOAM,UPR SIDE PANEL-LH | 1 | $16.49 | |
| 4 | 0637-318 | KIT,UPDATE-PROT FOIL | 1 | $2.95 | |
| 5 | 9611-256 | DECAL,UPPER PANEL-"TZ1"-RH | 1 | $42.95 | |
| 5 | 9611-257 | DECAL,UPPER PANEL-"TZ1"-LH | 1 | $42.95 | |
| 6 | 4606-650 | VENT,UPR PANEL-REAR RH-MOLD BLK | 1 | $26.95 | |
| 6 | 4606-651 | VENT,UPR PANEL-REAR LH-MOLD BLK | 1 | $26.95 | |
| 7 | 5606-650 | VENT,UPR PANEL-RH-MOLD BLK | 1 | $16.49 | |
| 7 | 5606-651 | VENT,UPR PANEL-LH-MOLD BLK | 1 | $16.49 | |
| 8 | 6606-191 | SCREEN,UPR SIDE PANEL VENT-LH | 1 | $22.01 | |
| 9 | 2718-800 | PANEL,SIDE-LWR-W/O DECALS RH BLK | 1 | $288.95 | |
| 9 | 2718-349 | PANEL,SIDE-LWR LH W/O DECALS-BLK | 1 | $298.95 | |
| 10 | 0617-568 | FOAM,LWR SIDE PANEL-REAR RH | 1 | $93.95 | |
| 10 | 0617-567 | FOAM,LWR SIDE PANEL- REAR LH (19mm THK) | 1 | $93.95 | |
| 11 | 0617-564 | FOAM,LWR SIDE PANEL-FRT RH | 1 | $16.49 | |
| 11 | 0617-566 | FOAM,LWR SIDE PANEL-FRT LH(19mm THK) | 1 | $16.49 | |
| 12 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 13 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 14 | 8408-635 | SCREW,CAP-HFH M6X1.0X35 CL8.8 Z&Y | 1 | $0.68 | |
| 15 | 3706-706 | PLATE,SKID-BLK RH-ROUTED | 1 | $62.95 | |
| 15 | 4706-073 | PLATE, SKID-LH-BLK-ROUTED-F/C | 1 | $57.95 | |
| 16 | 4606-982 | FOIL,RH SKID PLATE-HINGE | 1 | $15.11 | |
| 17 | 4606-796 | FOIL,PROTECTIVE-RH SKID PLATE-UPR FRT | 1 | $1.64 | |
| 18 | 4606-798 | FOIL,PROTECTIVE-RH SKID PLATE-OUTER | 1 | $2.47 | |
| 19 | 4606-797 | FOIL,PROTECTIVE-RH SKID PLATE-CENTER | 1 | $4.26 | |
| 20 | 2612-268 | SHIELD,HEAT-RH SKID PLATE | 1 | $22.01 | |
| 21 | 1712-328 | PLATE,EXH-OUTLET SEAL-PTD | 1 | $56.95 | |
| 22 | 2612-122 | SEAL,EXHAUST-OUTLET-4 STRK | 1 | $17.87 | |
| 23 | 1712-501 | SHIELD,HEAT-EXHAUST OUTLET-PTD | 1 | $32.95 | |
| 24 | 8060-510 | RIVET,BLIND-DH SS58 BLK | 1 | $0.68 | |
| 25 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 26 | 0623-778 | RIVET, BULBEX-BF01-0625 | 1 | $1.09 | |
| 27 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 28 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 29 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 | |
| 30 | 0745-363 | BRKT,HOOD SENSOR-PTD BLK | 1 | $19.25 | |
| 31 | 0630-228 | SWITCH,ALARM-REVERSE | 1 | $109.95 | |
| 32 | 1623-129 | R/B 2623-166 | 1 | $0.35 |
