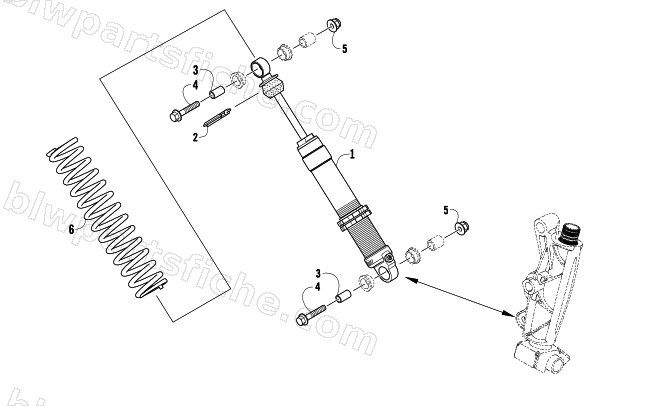

FRONT SUSPENSION SHOCK ABSORBER ASSEMBLY
2011 TZ1 TURBO LXR LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2703-594 | SHOCK,SKI-ZERO PRO-16.70"- (TURBO) | 1 | $425.95 | |
| 2 | 3604-200 | RETAINER,SPRING-POWDER METAL | 1 | $6.06 | |
| 3 | 3604-109 | SLEEVE,SHOCK EYELET-10mm ID | 1 | $4.40 | |
| 4 | 8408-055 | SCREW,CAP-HFH M10X1.25X55 CL8.8 Z&Y | 1 | $3.16 | |
| 5 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 6 | 2703-604 | SPRING,COMP-145 LB X 13"-PTD APL GRN MET | 1 | $77.95 |
