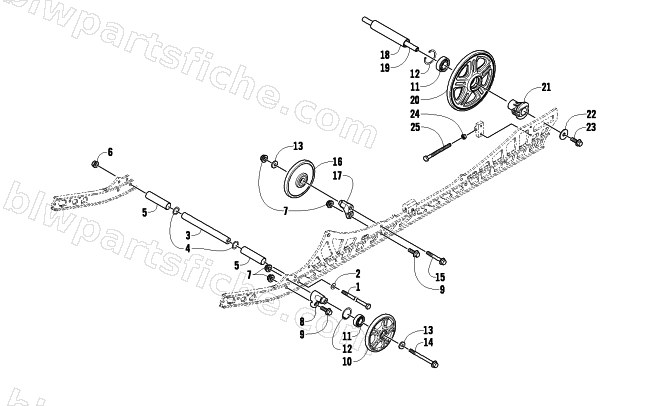

IDLER WHEEL ASSEMBLY
2011 M8 153
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1623-037 | SCREW, CAP-HH 3/8-16X10 GD 8 Z&Y | 1 | $6.47 | |
| 2 | 0623-439 | WASHER, FLAT .375X.625X.064 | 1 | $2.33 | |
| 3 | 3604-080 | AXLE, ALUM-.875 DIA X 8.750 | 1 | $47.95 | |
| 4 | 0623-912 | WASHER,FLAT-.890 X 1.19 X .060 Z&Y | 1 | $0.95 | |
| 5 | 3604-083 | SPACER,FRONT ARM SHOCK | 1 | $12.35 | |
| 6 | 8047-490 | NUT,HEX FLG-NY LOCK 3/8-16 GR G Z&Y | 1 | $0.95 | |
| 7 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 8 | 3604-207 | BLOCK 1.904",MTG-IDLER WHEEL-DIE CAST | 1 | $29.95 | |
| 9 | 8020-134 | SCREW,CAP-HFH 5/16-18 X 1.25 G5 Z&Y | 1 | $1.50 | |
| 10 | 3604-386 | WHEEL,IDL-5.63 W.787"ID BLK (SPOKE) | 1 | $53.95 | |
| 11 | 3604-033 | BEARING,WHL-NSK CHINA 6004-W/ENS GREASE | 1 | $20.63 | |
| 12 | 0623-946 | RING,INTERNAL RETAINING-#165 | 1 | $2.06 | |
| 13 | 8450-133 | WASHER,FLAT-M8-9.12 X 25.40 X 2.30Z&Y | 1 | $0.28 | |
| 14 | 8020-140 | SCREW,CAP-HFH 5/16-18 X 2.75 G5 Z&Y | 1 | $2.75 | |
| 15 | 8020-142 | SCREW,CAP-HFH 5/16-18 X 3.25 G5 Z&Y | 1 | $3.95 | |
| 16 | 3604-807 | WHEEL,IDL-5.63 W.787"ID-BLK (NO SPK) | 1 | $53.95 | |
| 17 | 3604-004 | BLOCK,MTG-IDLER WHEEL(DIE CAST) | 1 | $29.95 | |
| 18 | 1604-810 | SPACER,REAR WHEEL-CTR | 1 | $32.95 | |
| 19 | 3604-399 | AXLE,XBRC-.785X9.200 (3/8-16) | 1 | $30.95 | |
| 20 | 3604-073 | WHEEL,IDL-8.00 W.787"ID BLK (OPEN) | 1 | $53.95 | |
| 21 | 1704-489 | BUSHING,ADJUSTER-MACH | 1 | $6.06 | |
| 22 | 1623-738 | WASHER,FLAT-1.75X.390X.162-ALUM | 1 | $12.35 | |
| 23 | 1623-248 | SCREW,CAP-HFH 3/8-16X1.125 W/2353 | 1 | $4.40 | |
| 24 | 0123-150 | NUT,JAM 3/8-16 | 1 | $0.40 | |
| 25 | 0124-310 | HHCS 3/8-16X4.0 THREADED GR5 Z&Y | 1 | $2.47 |
