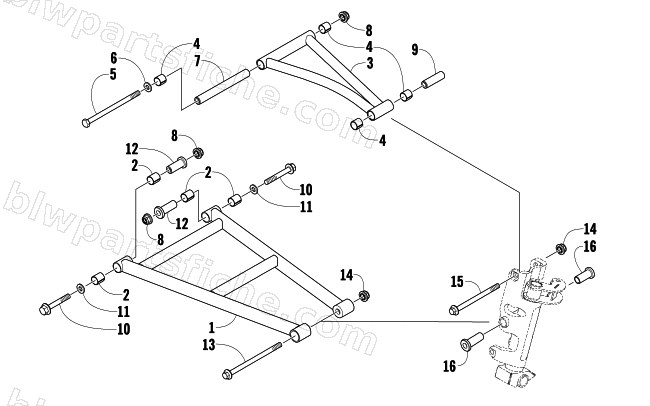

A-ARM ASSEMBLY
2011 M8 153
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2703-715 | A-ARM,LOWER-40"-FAB (PC GRN) | 1 | $191.95 | |
| 2 | 1603-895 | BEARING, 10DU10-FRONT SUSPENSION | 1 | $5.37 | |
| 3 | 2703-711 | A-ARM,UPPER-40"-FAB (PC GRN) | 1 | $201.95 | |
| 4 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 5 | 0623-952 | SCREW,CAP-HH 3/8-16X7.25 | 1 | $3.85 | |
| 6 | 0623-664 | WASHER,FLAT 1.00X.390X.164 Z&Y | 1 | $1.23 | |
| 7 | 2603-771 | AXLE,UPPER ARM-INNER-ALUM | 1 | $26.95 | |
| 8 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 9 | 2603-770 | AXLE,UPPER SPINDLE MTG-2.095"-ALUM | 1 | $37.95 | |
| 10 | 8020-230 | SCREW,CAP-HFH 3/8-16 X 2.75 Z&Y | 1 | $3.44 | |
| 11 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 | |
| 12 | 2603-820 | AXLE,A-ARM-LWR INNER-ALUM | 1 | $17.87 | |
| 13 | 8026-236 | SCREW,CAP-HFH 3/8-16 X 5.00 GR8 Z&Y | 1 | $4.40 | |
| 14 | 8047-490 | NUT,HEX FLG-NY LOCK 3/8-16 GR G Z&Y | 1 | $0.95 | |
| 15 | 8026-232 | SCREW,CAP-HFH 3/8-16 X 3.25 GR8 Z&Y | 1 | $5.37 | |
| 16 | 2603-772 | AXLE,LOWER SPINDLE MTG-3/8"-ALUM | 1 | $22.01 |
