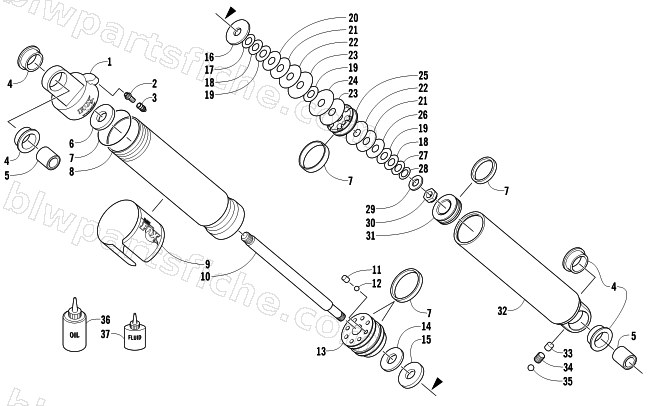

2011 Arctic Cat M8 153 SNO PRO LTD — FRONT SUSPENSION SHOCK ABSORBER
2011 M8 153 SNO PRO LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2703-801 | SHOCK,SKI-FLOAT 17.55"-ASSY | 1 | $743.95 | |
| 1 | 2603-418 | CAP,AIR SLEEVE-FLOAT ASSY | 1 | $181.95 | |
| 2 | 2603-511 | VALVE,AIR-LOW TEMP (FOX) | 1 | $32.95 | |
| 3 | 2603-327 | CAP,VALVE-AIR - (FOX) | 1 | $12.35 | |
| 4 | 0603-955 | BUSHING, SKI SHOCK-.045" LIP | 1 | $9.59 | |
| 5 | 1603-209 | SLEEVE, EYELET - INNER - .790 TLG | 1 | $1.23 | |
| 6 | 2603-613 | SPACER,AIR VOLUME REDUCER-.1875" | 1 | $16.95 | |
| 7 | 2604-796 | KIT,REBUILD-SEAL/BEARING-FLOAT | 1 | $152.95 | |
| 8 | 2603-412 | SLEEVE,AIR-ASSY-8.415"-(FLOAT) | 1 | $306.95 | |
| 9 | 2603-610 | DECAL,FOX FLOAT-2006 | 1 | $38.95 | |
| 10 | 2603-416 | SHAFT,SHOCK-.498 X 8.850" | 1 | $143.95 | |
| 11 | 1603-940 | SCREW-SET,8-32X.250 | 1 | $1.95 | |
| 12 | 1604-315 | BALL, BLEED | 1 | $4.95 | |
| 13 | 2603-333 | BEARING,ENDCAP- ASSY- 1.750 OD - (FLOAT) | 1 | $153.95 | |
| 14 | 0603-386 | BUMPER,INTERNAL | 1 | $26.95 | |
| 15 | 2603-474 | SPACER,.504ID X 1.25OD X .250THK 6061AL | 1 | $29.95 | |
| 16 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 17 | 2603-045 | VALVE,SHOCK- .700 DIA X .010 | 1 | $5.95 | |
| 18 | 0603-334 | VALVE, .800X.008 (3/8ID) | 1 | $12.95 | |
| 19 | 0603-337 | VALVE, .900X.008(3/8ID) | 1 | $12.95 | |
| 20 | 0603-339 | VALVE,1.000X.006(3/8ID) | 1 | $6.89 | |
| 21 | 0603-342 | VALVE,1.100X.006(3/8ID) | 1 | $6.95 | |
| 22 | 0603-346 | VALVE,1.250X.008(3/8ID) | 1 | $6.95 | |
| 23 | 0603-348 | VALVE,1.300X.006(3/8ID) | 1 | $13.95 | |
| 24 | 0603-349 | VALVE,1.300X.008(3/8ID) | 1 | $13.95 | |
| 25 | 0603-209 | PISTON,SHOCK-.081 DIA HOLE | 1 | $79.95 | |
| 26 | 0603-340 | VALVE,1.000X.008(3/8ID) | 1 | $12.95 | |
| 27 | 0603-331 | VALVE, .700X.008(3/8ID) | 1 | $6.95 | |
| 28 | 2603-902 | VALVE, .550 X .020 (3/8 ID) | 1 | $6.95 | |
| 29 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 30 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 31 | 2603-417 | PISTON,IFP FLOAT-ASSY | 1 | $44.95 | |
| 32 | 2603-414 | BODY,FLOAT SHOCK-8.825" | 1 | $447.95 | |
| 33 | 1604-428 | PLUG, RUBBER - VALVE | 1 | $13.73 | |
| 34 | 2603-338 | SCREW,SET-3/8-24 X .25" | 1 | $15.11 | |
| 35 | 2603-337 | BALL,AIR VALVE (.219 OD) - (FLOAT) | 1 | $7.16 | |
| 36 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 | |
| 37 | 4639-012 | FLOAT FLUID,FOX RACING SHOX-8 OZ | 1 | $18.95 |
