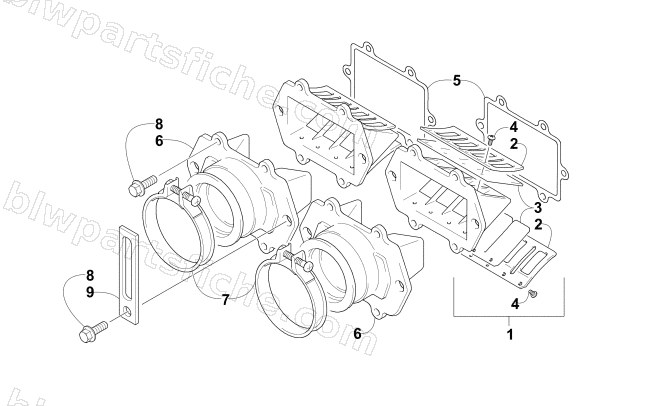

REED VALVE ASSEMBLY
2011 M8 153 HCR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-886 | VALVE,REED-ASSY | 1 | $271.95 | |
| 2 | 3007-887 | STOPPER,REED VALVE | 1 | $30.95 | |
| 3 | 3007-888 | VALVE,REED | 1 | $50.95 | |
| 4 | 3004-506 | SCREW, 3X8 | 1 | $2.47 | |
| 5 | 3005-879 | GASKET, REED VALVE | 1 | $17.87 | |
| 6 | 3006-527 | PIPE,INTAKE | 1 | $133.95 | |
| 7 | 3402-455 | CLAMP, DUCT REAR | 1 | $13.73 | |
| 8 | 3007-380 | BOLT | 1 | $3.16 | |
| 9 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 |
