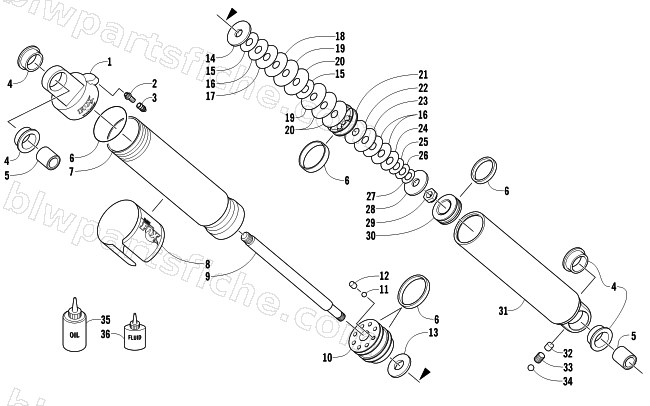

2011 Arctic Cat M8 153 HCR — REAR SUSPENSION REAR ARM SHOCK ABSORBER
2011 M8 153 HCR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2704-020 | SHOCK,FLOAT-16"-REAR ARM-HCR-ASSY | 1 | $385.95 | |
| 1 | 3604-319 | END CAP,AIR SLEEVE-ASSY | 1 | $314.95 | |
| 2 | 2603-511 | VALVE,AIR-LOW TEMP (FOX) | 1 | $32.95 | |
| 3 | 2603-327 | CAP,VALVE-AIR - (FOX) | 1 | $12.35 | |
| 4 | 1604-222 | BUSHING,REAR ARM SHOCK-.125" LIP | 1 | $17.87 | |
| 5 | 2604-223 | SLEEVE, .571 X .815 X .950TLG | 1 | $33.95 | |
| 6 | 2604-796 | KIT,REBUILD-SEAL/BEARING-FLOAT | 1 | $152.95 | |
| 7 | 2603-722 | SLEEVE,AIR ASSY-7.915 TLG (FLOAT) | 1 | $233.95 | |
| 8 | 2603-610 | DECAL,FOX FLOAT-2006 | 1 | $38.95 | |
| 9 | 3604-320 | SHAFT,SHOCK-.498 X 8.150" | 1 | $152.95 | |
| 10 | 2603-333 | BEARING,ENDCAP- ASSY- 1.750 OD - (FLOAT) | 1 | $153.95 | |
| 11 | 1604-315 | BALL, BLEED | 1 | $4.95 | |
| 12 | 1603-940 | SCREW-SET,8-32X.250 | 1 | $1.95 | |
| 13 | 0603-386 | BUMPER,INTERNAL | 1 | $26.95 | |
| 14 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 15 | 0603-337 | VALVE, .900X.008(3/8ID) | 1 | $12.95 | |
| 16 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 17 | 0603-343 | VALVE,1.100X.008(3/8ID) | 1 | $6.95 | |
| 18 | 0603-347 | VALVE,1.250X.010(3/8ID) | 1 | $13.95 | |
| 19 | 0603-350 | VALVE,1.300X.010(3/8ID) | 1 | $17.95 | |
| 20 | 0603-349 | VALVE,1.300X.008(3/8ID) | 1 | $13.95 | |
| 21 | 2603-935 | PISTON,HIGH FLOW-.070 ORIFICE | 1 | $72.95 | |
| 22 | 0603-882 | VALVE, SHOCK 1.100 X.012(3/8ID) | 1 | $12.95 | |
| 23 | 0603-344 | VALVE,1.100X.010(3/8ID) | 1 | $12.95 | |
| 24 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 25 | 0603-879 | VALVE, SHOCK .800 X.012(040-12-080) | 1 | $6.95 | |
| 26 | 0603-878 | VALVE, SHOCK .700X.012(040-12-070) | 1 | $12.95 | |
| 27 | 2603-902 | VALVE, .550 X .020 (3/8 ID) | 1 | $6.95 | |
| 28 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 29 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 30 | 2603-417 | PISTON,IFP FLOAT-ASSY | 1 | $44.95 | |
| 31 | 2603-335 | BODY,SHOCK-IMPACT ALUM-7.725"- (FLOAT) | 1 | $200.95 | |
| 32 | 1604-428 | PLUG, RUBBER - VALVE | 1 | $13.73 | |
| 33 | 2603-338 | SCREW,SET-3/8-24 X .25" | 1 | $15.11 | |
| 34 | 2603-337 | BALL,AIR VALVE (.219 OD) - (FLOAT) | 1 | $7.16 | |
| 35 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 | |
| 36 | 4639-012 | FLOAT FLUID,FOX RACING SHOX-8 OZ | 1 | $18.95 |
