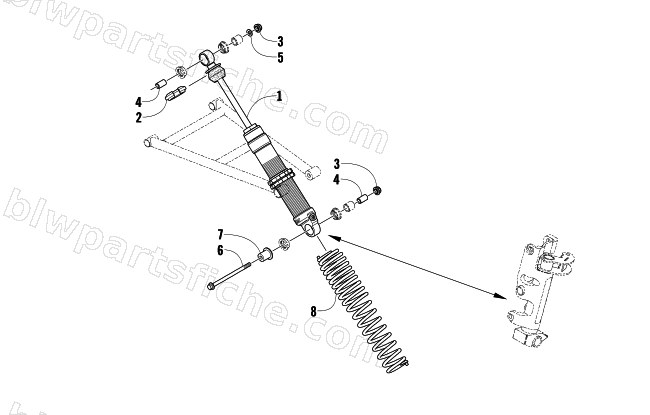

2011 Arctic Cat M8 153 HCR — FRONT SUSPENSION SHOCK ABSORBER ASSEMBLY
2011 M8 153 HCR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2703-800 | SHOCK,SKI-ZERO PRO-18.72" | 1 | $447.95 | |
| 2 | 1603-890 | RETAINER,SPRING | 1 | $13.73 | |
| 3 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 4 | 3604-594 | AXLE,SHOCK EYELET-10(ID)X20.7 MM | 1 | $4.40 | |
| 5 | 0623-991 | WSHR, FLAT ALUM-.390 X 1.125 X .125 | 1 | $1.95 | |
| 6 | 8020-232 | SCREW,CAP-HFH 3/8-16 X 3.25 Z&Y | 1 | $5.65 | |
| 7 | 2603-493 | SPACER,MTG-SHOCK | 1 | $14.95 | |
| 8 | 2603-373 | SPRING,SHOCK-SKI (145#X11.5")-TITANIUM | 1 | $430.95 |
