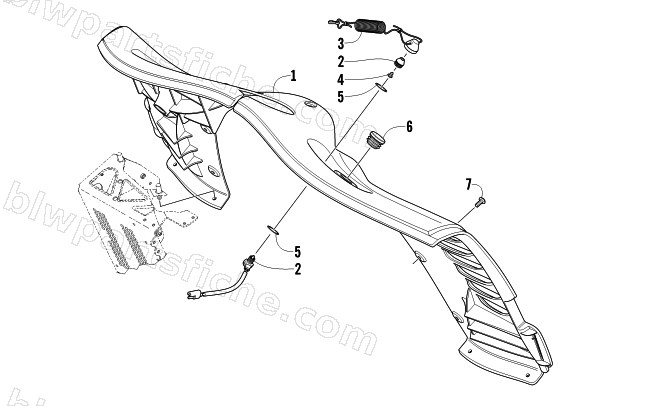

2011 Arctic Cat M8 153 HCR — CONSOLE AND SWITCH ASSEMBLY
2011 M8 153 HCR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4706-958 | CONSOLE,EFI-MACH (TETHER HOLE) | 1 | $69.95 | |
| 2 | 0709-071 | TETHER SWITCH-ASSY(OPEN) | 1 | $92.95 | |
| 3 | 0709-055 | TETHER CORD W/ SCREW | 1 | $34.95 | |
| 5 | 0123-985 | WASHER,INT LOCK .472 | 1 | $2.88 | |
| 6 | 1606-079 | CLOSURE,TUBE-7/8 X 16 GA-BLK | 1 | $4.26 | |
| 7 | 8468-511 | SCREW,MACH-TSPNH M5X0.8X10 CL8 BLK W/204 | 1 | $9.59 |
