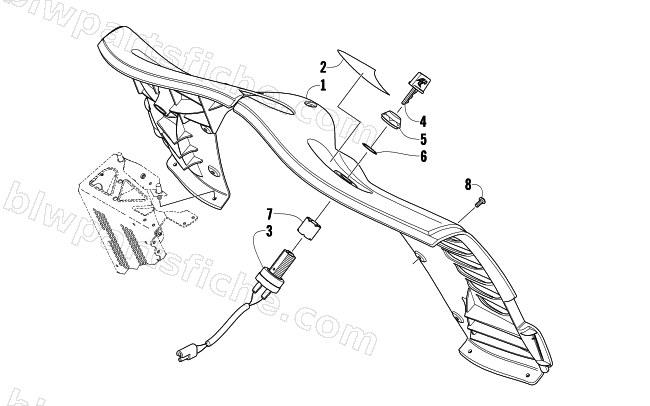

2011 Arctic Cat M1000 162 SNO PRO — CONSOLE AND SWITCH ASSEMBLY
2011 M1000 162 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3606-442 | CONSOLE,EFI | 1 | $174.95 | |
| 2 | 6611-581 | DECAL,CONSOLE-EFI | 1 | $66.95 | |
| 3 | 0609-728 | SWITCH,IGNITION-NORM OPEN (LOW) | 1 | $54.95 | |
| 5 | 0609-113 | NUT,RETAINING 13/16-20 BLACK PLASTIC | 1 | $1.50 | |
| 6 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 8 | 8468-511 | SCREW,MACH-TSPNH M5X0.8X10 CL8 BLK W/204 | 1 | $9.59 |
