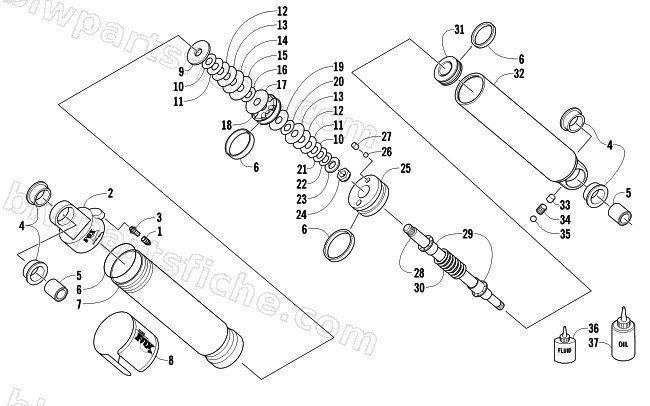

2011 Arctic Cat F8 LXR SNO PRO LTD — FRONT SUSPENSION SHOCK ABSORBER
2011 F8 LXR SNO PRO LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2703-703 | SHOCK,SKI-FLOAT 2 - 16.80" | 1 | $744.95 | |
| 1 | 2603-327 | CAP,VALVE-AIR - (FOX) | 1 | $12.35 | |
| 2 | 3604-319 | END CAP,AIR SLEEVE-ASSY | 1 | $314.95 | |
| 3 | 2603-511 | VALVE,AIR-LOW TEMP (FOX) | 1 | $32.95 | |
| 4 | 1604-222 | BUSHING,REAR ARM SHOCK-.125" LIP | 1 | $17.87 | |
| 5 | 2604-223 | SLEEVE, .571 X .815 X .950TLG | 1 | $33.95 | |
| 6 | 2604-796 | KIT,REBUILD-SEAL/BEARING-FLOAT | 1 | $152.95 | |
| 7 | 2603-628 | SLEEVE,FLOAT-1.834ID X 2.08 OD X 8.915" | 1 | $0.00 | |
| 8 | 2603-905 | DECAL,6.50" X 4.75" FOX FLOAT 2 | 1 | $68.95 | |
| 9 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 10 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 11 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 12 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 13 | 0603-882 | VALVE, SHOCK 1.100 X.012(3/8ID) | 1 | $12.95 | |
| 14 | 0603-347 | VALVE,1.250X.010(3/8ID) | 1 | $13.95 | |
| 15 | 0603-891 | VALVE, SHOCK 1.300 X.012 | 1 | $12.95 | |
| 16 | 0603-879 | VALVE, SHOCK .800 X.012(040-12-080) | 1 | $6.95 | |
| 17 | 0603-349 | VALVE,1.300X.008(3/8ID) | 1 | $13.95 | |
| 18 | 2603-898 | PISTON,HIGH FLOW-.053 ORIFICE | 1 | $79.95 | |
| 19 | 0603-343 | VALVE,1.100X.008(3/8ID) | 1 | $6.95 | |
| 20 | 0603-330 | VALVE, .700X .006 (3/8 ID) | 1 | $12.95 | |
| 21 | 2603-045 | VALVE,SHOCK- .700 DIA X .010 | 1 | $5.95 | |
| 22 | 2603-902 | VALVE, .550 X .020 (3/8 ID) | 1 | $6.95 | |
| 23 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 24 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 25 | 2603-906 | BEARING ASSY,FLOAT - MAX AIR-NEG. SPRING | 1 | $223.95 | |
| 26 | 1604-315 | BALL, BLEED | 1 | $4.95 | |
| 27 | 1603-940 | SCREW-SET,8-32X.250 | 1 | $1.95 | |
| 28 | 2603-903 | SHAFT,SHOCK-.498 X 8.950 TLG | 1 | $72.95 | |
| 29 | 2603-522 | GUIDE,SPRING-1.15OD X .800 TLG | 1 | $89.95 | |
| 30 | 2603-656 | SPRING,NEG.2.500 TLGX0.830 ID X 160 LBS | 1 | $97.95 | |
| 31 | 2603-417 | PISTON,IFP FLOAT-ASSY | 1 | $44.95 | |
| 32 | 2603-904 | BODY,FLOAT-1.459 BORE X 8.725" | 1 | $400.95 | |
| 33 | 1604-428 | PLUG, RUBBER - VALVE | 1 | $13.73 | |
| 34 | 2603-338 | SCREW,SET-3/8-24 X .25" | 1 | $15.11 | |
| 35 | 2603-337 | BALL,AIR VALVE (.219 OD) - (FLOAT) | 1 | $7.16 | |
| 36 | 4639-012 | FLOAT FLUID,FOX RACING SHOX-8 OZ | 1 | $18.95 | |
| 37 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
