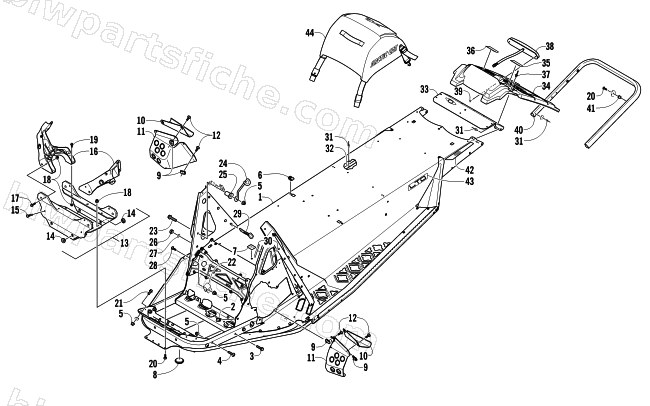

2011 Arctic Cat F8 LXR SNO PRO LTD — CHASSIS, REAR BUMPER, AND SNOWFLAP ASSEMBLY
2011 F8 LXR SNO PRO LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1707-343 | CHASSIS,2 STROKE-PTD BLK | 1 | $2,568.95 | |
| 2 | 1623-640 | CLIP,U-NUT M8 | 1 | $3.02 | |
| 3 | 1623-428 | SCREW,CAP-HFH M8 X 1.25 X 40 TRILOBE Z&Y | 1 | $4.95 | |
| 4 | 8476-835 | SCREW,MACH-TSTRH M8X1.25X35 Z&Y | 1 | $3.59 | |
| 5 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 6 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 7 | 2606-007 | FOIL, PROTECTIVE | 1 | $1.78 | |
| 8 | 1623-625 | PLUG,CENTER PAN | 1 | $1.09 | |
| 9 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 10 | 3706-504 | BRKT,TOE HOOK-RH-PTD BLK | 1 | $20.63 | |
| 10 | 3706-505 | BRKT,TOE HOOK-LH-PTD BLK | 1 | $20.63 | |
| 11 | 3706-502 | SHIELD,TOE-RH-PTD BLK | 1 | $69.95 | |
| 11 | 3706-503 | SHIELD,TOE-LH-PTD BLK | 1 | $69.95 | |
| 12 | 8471-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 Z&B | 1 | $0.68 | |
| 13 | 1707-340 | BRKT,FRT SUSP MTG-W/BUSHINGS | 1 | $359.95 | |
| 14 | 0605-763 | BUSHING,LWR A-ARM | 1 | $3.44 | |
| 15 | 1623-443 | BOLT, RIBBED NECK M6 X 35 Z&Y | 1 | $1.78 | |
| 16 | 0607-806 | FRAME, UPPER-SHOCK MTG-RH | 1 | $128.95 | |
| 16 | 0607-807 | FRAME, UPPER-SHOCK MTG-LH | 1 | $128.95 | |
| 17 | 8408-625 | SCREW,CAP-HFH M6X1.0X25 CL8.8 Z&Y | 1 | $0.54 | |
| 18 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 19 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 20 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 21 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 22 | 1623-080 | CLAMP, FLEX SHAFT (550/600) | 1 | $1.50 | |
| 23 | 8408-870 | SCREW,CAP-HFH M8X1.25X70 CL8.8 Z&Y | 1 | $2.61 | |
| 24 | 0708-532 | WIRFORM,ROPE GUIDE-PTD BLK | 1 | $20.63 | |
| 25 | 2603-543 | AXLE, A-ARM-LWR-REAR | 1 | $3.99 | |
| 26 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 27 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 28 | 8476-825 | SCREW,MACH-TSTRH M8X1.25X25 Z&Y | 1 | $3.71 | |
| 29 | 4606-454 | STRAP,HOLDDOWN-UPR PANEL-RH | 1 | $4.68 | |
| 29 | 4606-455 | STRAP,HOLDDOWN-UPR PANEL-LH | 1 | $4.68 | |
| 30 | 0706-371 | TRIM,RACK-36 | 1 | $20.63 | |
| 31 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 32 | 6606-056 | SUPPORT, TUNNEL-RH | 1 | $45.95 | |
| 33 | 4706-667 | ENDCAP,TUNNEL-PTD BLK | 1 | $33.95 | |
| 34 | 4706-547 | SNOWFLAP,SHORT-'09 CF | 1 | $82.95 | |
| 35 | 5611-852 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $2.47 | |
| 36 | 5611-853 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $2.47 | |
| 37 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 38 | 0609-863 | TAILLIGHT,LED-1.5" X 9.5" (10" LEAD)RED | 1 | $112.95 | |
| 39 | 0623-301 | SCREW,SELF TAP-HWH 10X1/2 AB Z&Y | 1 | $0.12 | |
| 40 | 4706-666 | BUMPER,REAR-W/INSERTS-PTD BLK | 1 | $126.95 | |
| 41 | 0423-391 | INSERT,M6X1.0-AL SERIES ALS4-610-4.2 | 1 | $3.57 | |
| 42 | 8611-720 | DECAL,REFLECTOR-RED-RH | 1 | $30.95 | |
| 42 | 8611-721 | DECAL,REFLECTOR-RED-LH | 1 | $30.95 | |
| 43 | 9611-308 | DECAL,TUNNEL-LTD | 1 | $22.01 | |
| 44 | 6606-241 | SADDLEBAG,REAR | 1 | $133.95 |
