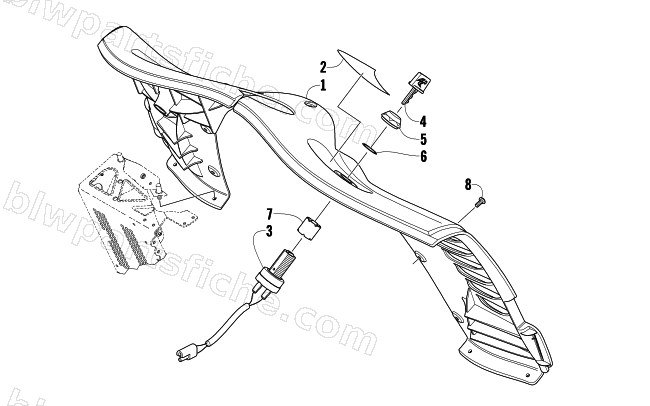

2011 Arctic Cat CF8 2.25 LTD SNO PRO — CONSOLE AND SWITCH ASSEMBLY
2011 CF8 2.25 LTD SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3606-442 | CONSOLE,EFI | 1 | $174.95 | |
| 2 | 6611-581 | DECAL,CONSOLE-EFI | 1 | $66.95 | |
| 3 | 0609-728 | SWITCH,IGNITION-NORM OPEN (LOW) | 1 | $54.95 | |
| 5 | 0609-113 | NUT,RETAINING 13/16-20 BLACK PLASTIC | 1 | $1.50 | |
| 6 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 8 | 8468-511 | SCREW,MACH-TSPNH M5X0.8X10 CL8 BLK W/204 | 1 | $9.59 |
