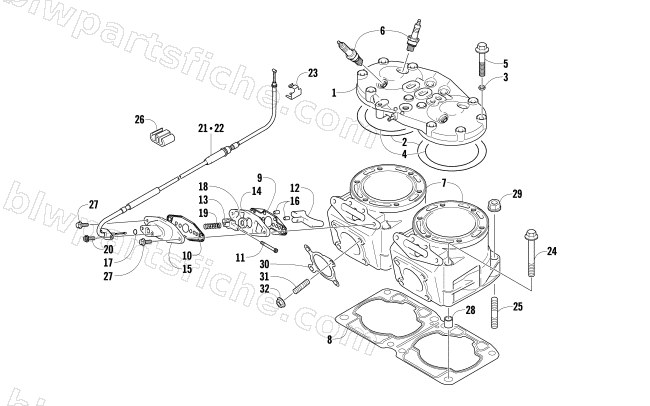

2011 Arctic Cat CF8 1.5 LTD SNO PRO — CYLINDER AND HEAD ASSEMBLY
2011 CF8 1.5 LTD SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 5639-520 | GASKET SET,ENGINE-800 (COMPLETE) | 1 | $517.95 | |
| 1 | 3007-873 | HEAD,CYLINDER | 1 | $646.95 | |
| 2 | 3004-081 | O-RING,HEAD-OUTER | 1 | $23.39 | |
| 3 | 3003-227 | O-RING, CYL HD BLT | 1 | $3.85 | |
| 4 | 3005-854 | O-RING | 1 | $30.95 | |
| 5 | 3006-538 | BOLT,CYL HEAD | 1 | $5.65 | |
| 6 | 0217-709 | SPARK PLUG, BR9EYA | 1 | $5.09 | |
| 7 | 3007-849 | CYLINDER, ( 010-800L/C) | 1 | $411.95 | |
| 8 | 3007-874 | GASKET,CYLINDER | 1 | $33.95 | |
| 9 | 3007-705 | GASKET,EXHAUST VALVE CASE | 1 | $13.73 | |
| 10 | 3006-436 | GASKET,EXHAUST VALVE COVER | 1 | $5.51 | |
| 11 | 3005-983 | PIN, EXHAUST VALVE 02 500 L/C | 1 | $19.25 | |
| 12 | 3007-875 | VALVE,EXHAUST | 1 | $373.95 | |
| 13 | 3005-860 | STOPPER, EXHAUST VALVE | 1 | $65.95 | |
| 14 | 3006-495 | PLATE,EXHAUST VALVE | 1 | $58.95 | |
| 15 | 3006-425 | COVER,EXHAUST VALVE | 1 | $84.95 | |
| 16 | 3006-321 | PIN,5X10 '02 440 SNO PRO | 1 | $10.95 | |
| 17 | 3005-226 | O RING, WATER DRAIN | 1 | $5.09 | |
| 18 | 3007-731 | SEAL,EXHAUST VALVE OIL | 1 | $27.95 | |
| 19 | 3006-484 | SPRING | 1 | $6.34 | |
| 20 | 3007-433 | BOLT | 1 | $3.16 | |
| 21 | 3007-247 | CABLE,EXHAUST (RECOIL SIDE) | 1 | $108.95 | |
| 22 | 3007-248 | CABLE,EXHAUST (CLUTCH SIDE) | 1 | $108.95 | |
| 23 | 3005-747 | HOLDER, EXHAUST VALVE CABLE | 1 | $15.11 | |
| 24 | 3007-525 | BOLT (10X115) | 1 | $12.35 | |
| 25 | 3005-847 | BOLT, STUD | 1 | $9.59 | |
| 26 | 3005-808 | CLAMP | 1 | $6.95 | |
| 27 | 3007-434 | BOLT | 1 | $3.16 | |
| 28 | 3004-975 | PIN, CYLINDER KNOCK(ALIGMENT) | 1 | $2.61 | |
| 29 | 3007-391 | NUT,INTER COOLER BRKT | 1 | $3.16 | |
| 30 | 3007-889 | GASKET,EXHAUST | 1 | $19.25 | |
| 31 | 3007-415 | STUD BOLT | 1 | $4.95 | |
| 32 | 3007-390 | NUT,INTER COOLER | 1 | $3.16 |
