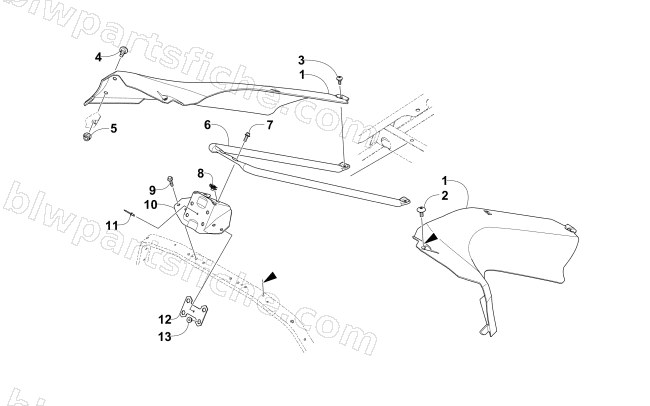

SEAT SUPPORT ASSEMBLY
2011 BEARCAT 570 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5606-360 | SPAR,RH-REAR-MOLD BLK | 1 | $56.95 | |
| 1 | 5606-361 | SPAR,LH-REAR-MOLD BLK | 1 | $56.95 | |
| 2 | 0423-396 | SCREW,SELF TAP-TSPH M6-1.0X15 | 1 | $1.09 | |
| 3 | 0423-557 | SCREW,SHLDR-TSPH M6-1.0X18MM Z&Y W/2353 | 1 | $0.68 | |
| 4 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 5 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 6 | 4706-037 | TUBE,STEERING SUPPORT-PTD BLK | 1 | $34.95 | |
| 7 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 8 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 9 | 8408-625 | SCREW,CAP-HFH M6X1.0X25 CL8.8 Z&Y | 1 | $0.54 | |
| 10 | 0605-968 | BRKT,STEERING POST-BCWT | 1 | $58.95 | |
| 11 | 8060-488 | RIVET,BLIND-DH SS56 ZINC | 1 | $0.40 | |
| 12 | 0605-948 | BRKT,NUT HOLDER | 1 | $20.63 | |
| 13 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 |
