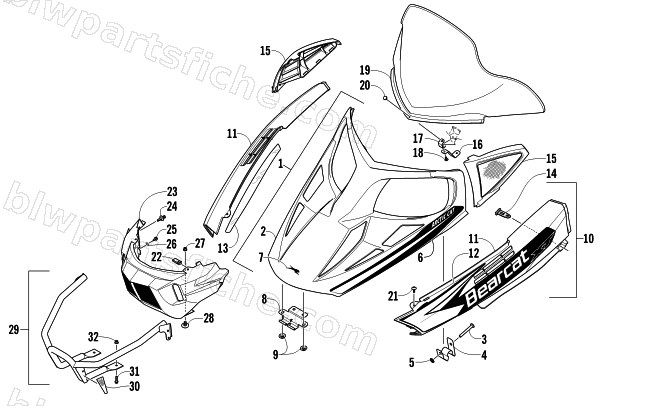

2011 Arctic Cat BEARCAT 570 XT — HOOD, WINDSHIELD, AND FRONT BUMBER ASSEMBLY
2011 BEARCAT 570 XT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3718-034 | LID,HOOD-BLK W/O VENTS-W/DECALS | 1 | $208.95 | |
| 2 | 7800-953 | LID,HOOD-BLK-W/O VENTS-MFG ASSY | 1 | $181.95 | |
| 3 | 1623-610 | PIN,RETAINING-HOOD | 1 | $22.01 | |
| 4 | 5706-084 | CLIP,HOLDDOWN-HOOD LID-RH-PTD BLK | 1 | $15.11 | |
| 4 | 5706-085 | CLIP,HOLDDOWN-HOOD LID-LH-PTD BLK | 1 | $15.11 | |
| 5 | 1623-409 | RETAINER,PUSHNUT-1/4 | 1 | $1.09 | |
| 6 | 9611-224 | DECAL,HOOD LID "ARCTIC CAT"-BLU-RH | 1 | $30.95 | |
| 6 | 9611-225 | DECAL,HOOD LID "ARCTIC CAT"-BLU-LH | 1 | $30.95 | |
| 7 | 8611-267 | DECAL,AIRCAT-DYMOFLEX CHROME | 1 | $20.63 | |
| 8 | 6606-027 | BRKT,LID HINGE-BCXT | 1 | $20.63 | |
| 9 | 1623-469 | NUT,STAMPED- 0.330 | 1 | $1.23 | |
| 10 | 3718-030 | SPAR,FRONT-RH-BLK XT-W/DECALS | 1 | $92.95 | |
| 10 | 3718-031 | SPAR,FRONT-LH-BLK XT-W/DECALS | 1 | $105.95 | |
| 11 | 5606-356 | SPAR,RH-FRONT-MOLD BLK | 1 | $66.95 | |
| 11 | 5606-357 | SPAR,LH-FRONT-MOLD BLK | 1 | $66.95 | |
| 12 | 9611-230 | DECAL,FRT SPAR-FORWARD-"XT"-BLU-RH | 1 | $57.95 | |
| 12 | 9611-231 | DECAL,FRT SPAR-FORWARD-"XT"-BLU-LH | 1 | $70.95 | |
| 13 | 4606-934 | FOIL,RH SPAR-BOTTOM | 1 | $1.50 | |
| 14 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 | |
| 15 | 5606-924 | BEZEL,INTAKE-RH-BLK ASSY | 1 | $58.95 | |
| 15 | 5606-925 | BEZEL,INTAKE-LH-BLK ASSY | 1 | $58.95 | |
| 16 | 5606-277 | BRKT, WINDSHIELD | 1 | $30.95 | |
| 17 | 4606-961 | BRKT,HOLDDOWN-WINDSHIELD | 1 | $17.87 | |
| 18 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 19 | 6606-278 | WINDSHIELD, EX HIGH | 1 | $315.95 | |
| 19 | 5606-962 | WINDSHIELD,HIGH-TINT | 1 | $224.95 | |
| 20 | 1623-677 | RIVET,PLASTIC - 6.0 MM DIA | 1 | $1.37 | |
| 21 | 1623-902 | SCREW,MH-TSTRH-M8X1.25X20-Z&BLK-W/2510 | 1 | $5.78 | |
| 22 | 1623-837 | WASHER,RUBBER-8X19X3 | 1 | $9.10 | |
| 23 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 24 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 25 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 | |
| 26 | 5706-073 | SUPPORT,WINDSHIELD-PTD BLK | 1 | $15.11 | |
| 27 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 28 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 29 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 30 | 5606-351 | FACIA, FRT-MOLD BLK | 1 | $116.95 | |
| 31 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 32 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 33 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 34 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 35 | 1623-775 | SCREW,SHOULDER TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 36 | 4706-961 | BUMPER,FRONT W/REFLECTORS | 1 | $259.95 | |
| 37 | 9611-386 | DECAL,REFLECTOR-AMBER RH | 1 | $22.01 | |
| 37 | 9611-387 | DECAL,REFLECTOR-AMBER LH | 1 | $22.01 | |
| 38 | 8408-025 | SCREW,CAP-HFH M10X1.25X25 CL8.8 Z&Y | 1 | $3.16 | |
| 39 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 |
