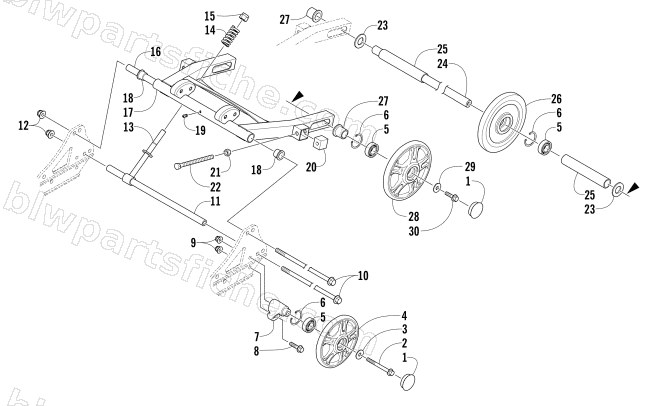

ARTICULATING SKID FRAME ASSEMBLY
2011 BEARCAT 570 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1604-952 | CAP,IDL WHL-BLACK | 1 | $13.73 | |
| 2 | 8408-880 | SCREW,CAP-HFH M8X1.25X80 CL8.8 Z&Y | 1 | $1.09 | |
| 3 | 8450-133 | WASHER,FLAT-M8-9.12 X 25.40 X 2.30Z&Y | 1 | $0.28 | |
| 4 | 3604-299 | WHEEL,IDL-5.63 W.787"ID WHITE | 1 | $53.95 | |
| 5 | 3604-033 | BEARING,WHL-NSK CHINA 6004-W/ENS GREASE | 1 | $20.63 | |
| 6 | 0623-946 | RING,INTERNAL RETAINING-#165 | 1 | $2.06 | |
| 7 | 3604-004 | BLOCK,MTG-IDLER WHEEL(DIE CAST) | 1 | $29.95 | |
| 8 | 8408-835 | SCREW,CAP-HFH M8X1.25X35 CL8.8 Z&Y | 1 | $2.06 | |
| 9 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 10 | 2623-078 | SCREW,CAP-HFH-M10X1.25X373 CL10.9-RIE SI | 1 | $24.77 | |
| 11 | 3604-463 | AXLE, STEEL-M10X344.55 Z&Y | 1 | $62.95 | |
| 12 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 13 | 1704-958 | ROD,ADJUSTER-SWING ARM-PTD BLK | 1 | $49.95 | |
| 14 | 1704-785 | SPRING, COMP-400#-SWING ARM-PTD BLK | 1 | $24.77 | |
| 15 | 1623-965 | NUT,HEX-THK NYL M12X1.25 CL8 Z&Y(DIN) | 1 | $1.50 | |
| 16 | 3604-429 | AXLE, STEEL-M10X344.55 | 1 | $27.95 | |
| 17 | 1704-956 | ARM,SWING-FABR | 1 | $240.95 | |
| 18 | 0104-386 | BUSHING,REAR ARM | 1 | $4.26 | |
| 19 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 20 | 3604-427 | ADJUSTER, TRACK-THREADED | 1 | $23.39 | |
| 21 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 22 | 0623-123 | SCREW,CAP-HEX-3/8-16X5 | 1 | $2.47 | |
| 23 | 0623-921 | WSHR, FLAT.788ID X 1.50OD X .109 | 1 | $1.64 | |
| 24 | 3604-450 | AXLE, STEEL-M8X457.7 | 1 | $65.95 | |
| 25 | 3604-451 | SPACER, REAR WHEEL-INNER | 1 | $13.73 | |
| 26 | 3604-049 | WHEEL,IDL-6.38 W.787"ID BLK (NO SPOKE) | 1 | $53.95 | |
| 27 | 3604-503 | SPACER, REAR WHEEL-OUTER | 1 | $4.54 | |
| 28 | 3604-587 | WHEEL,IDL-6.38 W.787"ID-WHT | 1 | $53.95 | |
| 29 | 0623-664 | WASHER,FLAT 1.00X.390X.164 Z&Y | 1 | $1.23 | |
| 30 | 8408-831 | SCREW,CAP-HFH M8X1.25X30 CL8.8 W/2353 | 1 | $0.95 |
