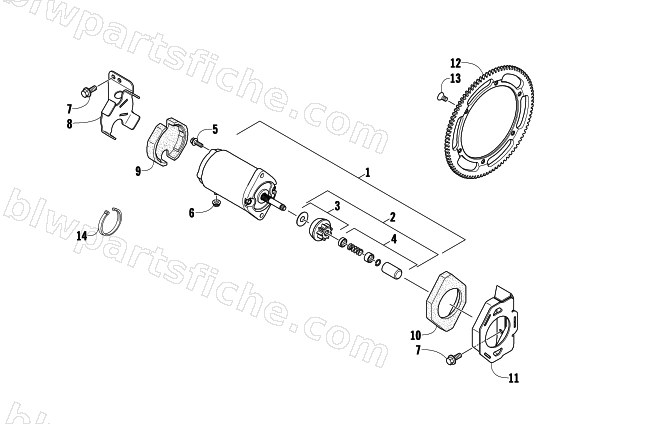

ELECTRIC START - STARTER MOTOR ASSEMBLY
2011 BEARCAT 570 LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 6639-631 | R/B 0745-434 | 1 | $479.95 | |
| 2 | 0745-224 | KIT, DRIVE PINION-.63 | 1 | $106.95 | |
| 3 | 0637-265 | UPDATE KIT,STARTER PINION DRIVE(4-1-2) | 1 | $92.95 | |
| 4 | 0645-186 | STOPPER KIT,PINION-EL START | 1 | $50.95 | |
| 5 | 0623-892 | SCREW,SELF TAP-HWH 1/4-20X1/2 | 1 | $0.95 | |
| 6 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 7 | 1623-553 | SCREW, CAP-HFH 5/16-18 X .750 W/2353 | 1 | $1.37 | |
| 8 | 0745-334 | BRKT,MTG-STARTER-RH-PTD BLK-570 | 1 | $228.95 | |
| 9 | 0645-568 | ISOLATOR, STARTER MTG-RH | 1 | $23.39 | |
| 10 | 0645-569 | ISOLATOR, STARTER MTG-LH | 1 | $23.39 | |
| 11 | 0745-335 | BRKT,MTG-STARTER-LH-PTD BLK-570 | 1 | $217.95 | |
| 12 | 0745-402 | RING GEAR,ELECTRIC START-TREATED | 1 | $153.95 | |
| 13 | 1623-821 | SCREW,MACH-TSFH M8X1.25X14 CL10.9Z&Y | 1 | $8.21 | |
| 14 | 0623-144 | TIE,CABLE-17.5 LONG | 1 | $0.54 |
