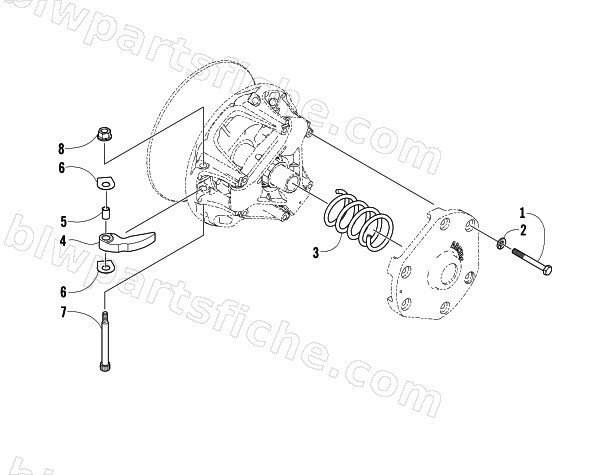

2011 Arctic Cat ARCTIC CAT SNO PRO 600 — DRIVE CLUTCH
2011 ARCTIC CAT SNO PRO 600
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0746-270 | KIT,DRIVE CLUTCH-2011 SNO CROSS | 1 | $952.95 | |
| 0 | 1639-030 | KIT, CAM ARM REPAIR- W/O ARMS | 1 | $81.95 | |
| 1 | 1623-442 | SCREW, CAP-HH 1/4-20X2.50 GD 8 | 1 | $1.23 | |
| 2 | 8051-212 | WASHER,SPR LOCK-1/4 .252X.487X.062 Z&Y | 1 | $0.12 | |
| 3 | 0646-410 | SPRING,CLUTCH-BLUE SPEEDWERX | 1 | $97.95 | |
| 4 | 0746-790 | ARM,CAM-60 GR-W/BEARING | 1 | $21.95 | |
| 5 | 0646-160 | BEARING,CAM ARM | 1 | $15.11 | |
| 6 | 0646-101 | WASHER,STEEL-CLUTCH | 1 | $0.95 | |
| 7 | 0646-295 | PIN, CAM-ARM | 1 | $15.11 | |
| 8 | 0623-392 | NUT,FLEX LOCK 10-24 | 1 | $1.50 |
