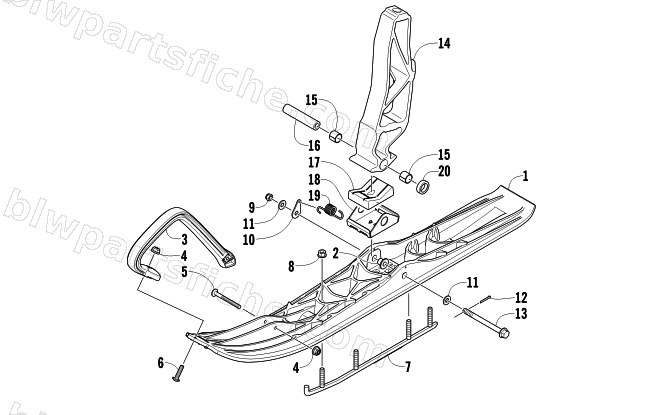

2011 Arctic Cat ARCTIC CAT SNO PRO 600 CROSS COUNTRY — SKI AND SPINDLE ASSEMBLY
2011 ARCTIC CAT SNO PRO 600 CROSS COUNTRY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2603-599 | R/B 3703-940 | 1 | $228.95 | |
| 2 | 2603-746 | INSERT, SKI - 10 MM | 1 | $2.47 | |
| 3 | 2603-598 | HANDLE,PLASTIC SKI-BLK | 1 | $33.95 | |
| 4 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 5 | 1623-688 | SCREW,MACH-TSTRH 1/4-20 X 2.00 GR5 Z&Y | 1 | $4.26 | |
| 6 | 1623-689 | SCREW,MACH-TSTRH 1/4-20 X 1.00 GR5 Z&Y | 1 | $8.21 | |
| 7 | 0703-871 | SKAG, 4" CARBIDE-PTD BLK | 1 | $62.95 | |
| 8 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 9 | 0423-744 | NUT,HEX FLANGE-NSL M10X1.25 W/ 204 PATCH | 1 | $1.92 | |
| 10 | 6606-205 | WASHER,SPRING HOLD | 1 | $2.06 | |
| 11 | 1623-801 | WASHER,FLAT-M10-10.98 X 28.00 X 1.6 Z&Y | 1 | $0.95 | |
| 12 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 13 | 1623-781 | BOLT,SKI-HFH M10- 1.25 X 137 CL10.9 | 1 | $5.65 | |
| 14 | 2703-560 | SPINDLE,RH-FABR | 1 | $289.95 | |
| 14 | 2703-561 | SPINDLE,LH-FABR | 1 | $289.95 | |
| 15 | 2603-481 | BEARING,GARLOCK (12DU16) | 1 | $2.75 | |
| 16 | 2603-813 | AXLE,SPINDLE-ALUM- 75MM (2.96") | 1 | $24.77 | |
| 17 | 2603-824 | DAMPER,SKI-RUBBER | 1 | $17.87 | |
| 18 | 2603-894 | PLATE,DAMPER | 1 | $30.95 | |
| 19 | 3606-549 | SPRING,SEAT STRAP | 1 | $16.49 | |
| 20 | 2603-932 | SPACER,SPINDLE-SKI-MACH | 1 | $5.09 |
