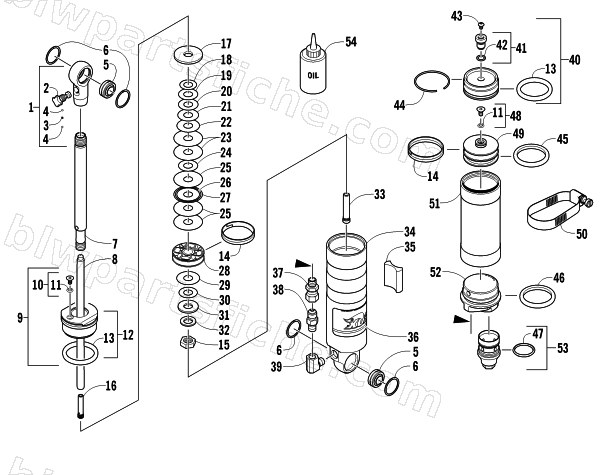

2011 Arctic Cat ARCTIC CAT SNO PRO 600 CROSS COUNTRY — REAR SUSPENSION REAR ARM SHOCK ABSORBER
2011 ARCTIC CAT SNO PRO 600 CROSS COUNTRY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2704-049 | SHOCK,REAR ARM-FOX(CROSS COUNTRY) | 1 | $1,079.95 | |
| 1 | 2604-961 | EYELET,W/REBOUND ADJUST-ASSY | 1 | $324.95 | |
| 2 | 2604-958 | KNOB,DAMPING ADJUST-.620 SHAFT,1.150 TLG | 1 | $82.95 | |
| 3 | 2604-960 | SPRING,.125TLG X .125OD X 50 LB/IN | 1 | $10.95 | |
| 4 | 1604-315 | BALL, BLEED | 1 | $4.95 | |
| 5 | 1604-664 | BEARING,SPHERICAL | 1 | $46.95 | |
| 6 | 3604-147 | RETAINING RING,INTERNAL SPIRAL | 1 | $16.49 | |
| 7 | 2604-955 | SHAFT,.187ID X .620OD X 7.565 LGTH | 1 | $184.95 | |
| 8 | 2604-954 | ROD,DAMPING ADJUST-.175 OD X 5.675" | 1 | $109.95 | |
| 9 | 3604-162 | KIT,REBUILD-REAR SHOCK | 1 | $201.95 | |
| 10 | 2604-530 | SCREW,MACH-HSFH 10-24X.375 SS-ASSY | 1 | $3.95 | |
| 12 | 2604-956 | BEARING ASSY,1.834 BORE,.620SHAFT-1.210 | 1 | $248.95 | |
| 14 | 1603-235 | STRAP, PISTON - RES | 1 | $21.95 | |
| 15 | 2604-448 | NUT,PISTON | 1 | $17.95 | |
| 16 | 2604-953 | NEEDLE,DAMPING ADJUST-W/O-RING | 1 | $43.95 | |
| 17 | 2604-449 | WASHER, TOPOUT-1.570OD X .500ID X .128TH | 1 | $13.73 | |
| 18 | 3604-628 | VALVE,.800 OD X .504 ID X .004 TH | 1 | $12.95 | |
| 19 | 2604-479 | VALVE,.950 OD X .504 ID X .008 TH | 1 | $6.95 | |
| 20 | 2604-485 | VALVE,1.100 OD X .504 ID X .008 TH | 1 | $6.95 | |
| 21 | 2604-491 | VALVE,1.350 OD X .504 ID X .008 TH | 1 | $12.95 | |
| 22 | 2604-496 | VALVE,1.425 OD X .504 ID X .008 TH | 1 | $12.95 | |
| 23 | 2604-502 | VALVE,1.600 OD X .504 ID X .010 TH | 1 | $12.95 | |
| 24 | 2604-480 | VALVE,.950 OD X .504 ID X .010 TH | 1 | $13.95 | |
| 25 | 2604-501 | VALVE,1.600 OD X .504 ID X .008 TH | 1 | $12.95 | |
| 26 | 2604-495 | VALVE,1.425 OD X .504 ID X .006 TH | 1 | $12.95 | |
| 27 | 2604-692 | VALVE,RING SHIM-1.600ODX1.435IDX.012THK | 1 | $13.95 | |
| 28 | 2604-673 | PISTON,DAMPING-NO BLEED 1.834 BORE-0/0 | 1 | $98.95 | |
| 29 | 2604-498 | VALVE,1.425 OD X .504 ID X .012 TH | 1 | $12.95 | |
| 30 | 3604-626 | VALVE,1.000 OD X .504 ID X .004 TH | 1 | $12.95 | |
| 31 | 3604-624 | WASHER,TOP OUT-1.40 X .504 X.080 GROUND | 1 | $6.95 | |
| 32 | 3604-184 | WASHER,BACKUP-.750 OD X .503 ID X .100TH | 1 | $13.95 | |
| 33 | 3604-423 | VALVE,CHECK-ASSY | 1 | $156.95 | |
| 34 | 3604-514 | BODY,ALUM-W/ BODY & EYELET GROOVES | 1 | $383.95 | |
| 35 | 3604-518 | SPACER,BODY/RESERVOIR-1.401X.535X1.950 | 1 | $26.95 | |
| 36 | 2604-889 | DECAL,SHOCK BODY-ZERO PRO-6.250X1.750 | 1 | $38.95 | |
| 37 | 2604-208 | ADAPTOR,STRAIGHT-1/8-27 MNPT | 1 | $56.95 | |
| 38 | 3604-521 | FITTING,ADAPTER-1/8-27 MNPT- 1.22TLG | 1 | $60.95 | |
| 39 | 3604-520 | FITTING,ELBOW-90DEG 1/8-27NPTF | 1 | $70.95 | |
| 40 | 2603-525 | END CAP,RESERVOIR-ASSY 1.834 BORE | 1 | $76.95 | |
| 41 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 42 | 1604-318 | O-RING-END CAP FITTING(FOX ONLY) | 1 | $11.95 | |
| 43 | 0624-097 | SCREW, MACH HSBH #8-32X.25 (SS) | 1 | $0.85 | |
| 44 | 0604-992 | RETAINER, .062X1.850 ID ENDCAP | 1 | $6.06 | |
| 45 | 3604-539 | KIT,REBUILD-1.834" BORE-RESERVOIR | 1 | $200.95 | |
| 46 | 2603-504 | O-RING,.103 CS X 1.737 ID | 1 | $13.95 | |
| 47 | 2603-502 | O-RING,.070 CS X .989 ID | 1 | $6.95 | |
| 48 | 1604-316 | SCREW, RELIEF W/ O-RING | 1 | $4.95 | |
| 49 | 2604-969 | PISTON,INTERNAL FLOATING-ASSY | 1 | $93.95 | |
| 50 | 3604-519 | CLAMP,HOSE-RESERVOIR-#52 | 1 | $25.95 | |
| 51 | 2603-515 | RESERVOIR,1.834 BORE X 4.00 TLG | 1 | $164.95 | |
| 52 | 3604-516 | ADJUST,DAMPING-CD HOUSING-ASSY-1.834 BOR | 1 | $351.95 | |
| 53 | 3604-620 | ADJUST,DAMPING-ASSY W/CD PLUG | 1 | $124.95 | |
| 54 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
