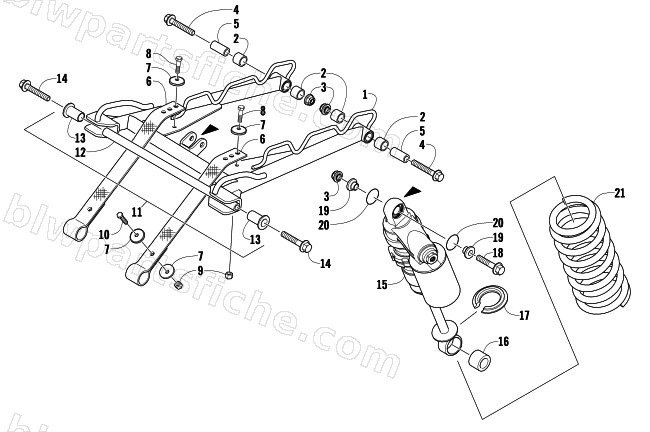

2011 Arctic Cat ARCTIC CAT SNO PRO 600 CROSS COUNTRY — REAR SUSPENSION FRONT ARM ASSEMBLY
2011 ARCTIC CAT SNO PRO 600 CROSS COUNTRY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1704-910 | ARM,FRONT-FABR | 1 | $375.95 | |
| 2 | 0604-889 | BUSHING,FRONT ARM | 1 | $3.71 | |
| 3 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 4 | 8020-228 | SCREW,CAP-HFH 3/8-16 X 2.25 G5 Z&Y | 1 | $2.75 | |
| 5 | 0104-629 | SPACER,FRONT ARM-PIVOT | 1 | $19.25 | |
| 6 | 3604-478 | STRAP,LIMITER-1.25" X 17.1" | 1 | $19.25 | |
| 7 | 0623-875 | WASHER, BACKING-7MM ID X 11/8OD | 1 | $1.78 | |
| 8 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 9 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 10 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 11 | 1704-909 | AXLE,FRT ARM ASSY-W/BUSHINGS | 1 | $93.95 | |
| 12 | 3604-554 | AXLE,FRONT ARM | 1 | $77.95 | |
| 13 | 3604-555 | BUSHING,AXLE | 1 | $27.95 | |
| 14 | 1623-903 | SCREW,CAP-HFH 3/8-16 X 1.50 Z&Y | 1 | $3.85 | |
| 15 | 2704-048 | SHOCK,FRT ARM-FOX(CROSS COUNTRY) | 1 | $1,341.95 | |
| 16 | 1604-791 | BUSHING,SHOCK-.890ID X .800 | 1 | $15.11 | |
| 17 | 3604-200 | RETAINER,SPRING-POWDER METAL | 1 | $6.06 | |
| 18 | 8020-227 | SCREW,CAP-HFH 3/8-16 X 2.00 Z&Y | 1 | $2.47 | |
| 19 | 1604-662 | SPACER,SS SPHERICAL BEARING-RR ARM | 1 | $22.01 | |
| 20 | 0670-183 | O-RING, 5/8 X 13/16 OD | 1 | $0.26 | |
| 21 | 1704-822 | SPRING,COMP-210 LB X 7.50"-PTD BLK | 1 | $73.95 | |
| 21 | 1704-820 | SPRING,COMP-170 LB X 7.50"-PTD BLK | 1 | $73.95 | |
| 21 | 1704-821 | SPRING,COMP-190 LB X 7.50"-PTD BLK | 1 | $64.95 | |
| 21 | 1704-819 | SPRING,COMP-230 LB X 7.50"-PTD BLK | 1 | $73.95 | |
| 21 | 1704-831 | SPRING,COMP-250 LB X 7.50"-PTD BLK | 1 | $137.95 |
