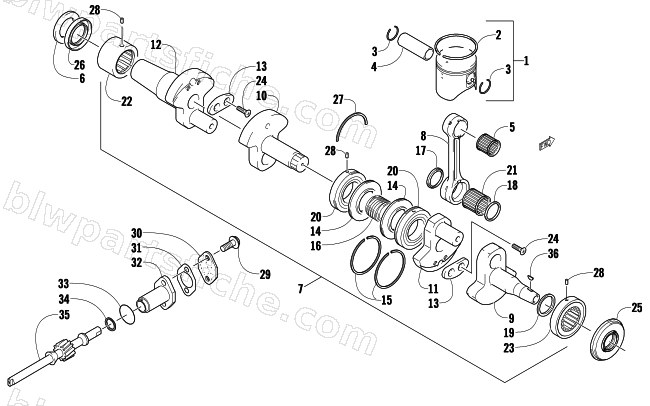

2011 Arctic Cat ARCTIC CAT SNO PRO 600 CROSS COUNTRY — PISTON AND CRANKSHAFT
2011 ARCTIC CAT SNO PRO 600 CROSS COUNTRY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-734 | PISTON SET (09 600 S/P) | 1 | $259.95 | |
| 2 | 3007-735 | PISTON RING SET | 1 | $118.95 | |
| 3 | 3003-439 | CIRCLIP,PISTON PIN,M20 | 1 | $3.16 | |
| 4 | 3007-737 | PIN,PISTON | 1 | $46.95 | |
| 5 | 3007-660 | BEARING,PISTON PIN (20X25X22) | 1 | $46.95 | |
| 6 | 3006-552 | SPACER,OIL SEAL | 1 | $13.73 | |
| 7 | 3007-900 | CRANKSHAFT ASSY | 1 | $3,930.95 | |
| 8 | 3007-662 | CONNROD | 1 | $312.95 | |
| 9 | 3007-739 | CRANKSHAFT,R | 1 | $561.95 | |
| 10 | 3007-664 | CRANKSHAFT-M | 1 | $508.95 | |
| 11 | 3007-665 | WHEEL,CRANKSHAFT | 1 | $494.95 | |
| 12 | 3007-901 | CRANKSHAFT-LH | 1 | $561.95 | |
| 13 | 3007-667 | BALANCER,CRANKSHAFT | 1 | $29.95 | |
| 14 | 3006-508 | RACE,MIDDLE CRANK SEAL | 1 | $78.95 | |
| 15 | 3005-508 | RING,MIDDLE CRANK SEAL | 1 | $34.95 | |
| 16 | 3006-519 | GEAR,OIL PUMP DRIVE | 1 | $208.95 | |
| 17 | 3005-494 | WASHER,CRANKPIN BEARING | 1 | $20.63 | |
| 18 | 3007-668 | WASHER (27X33X1) | 1 | $20.63 | |
| 19 | 3008-495 | WASHER,40MM | 1 | $4.68 | |
| 20 | 3008-421 | BEARING,BALL,M35 | 1 | $125.95 | |
| 21 | 3005-505 | BEARING,NEEDLE ROLLER,M27X34X20 | 1 | $112.95 | |
| 22 | 3007-439 | BEARING-LH | 1 | $303.95 | |
| 23 | 3006-551 | BEARING,RH | 1 | $277.95 | |
| 24 | 3007-440 | SCREW | 1 | $2.06 | |
| 25 | 3007-533 | SEAL,OIL-R (35X75X7) | 1 | $100.95 | |
| 26 | 3003-759 | R/B 0930-051 | 1 | $54.95 | |
| 27 | 3003-359 | C-RING,CRANKSHAFT,M75 | 1 | $20.63 | |
| 28 | 3003-658 | PIN,ALIGNMENT | 1 | $3.16 | |
| 29 | 3007-426 | BOLT | 1 | $3.16 | |
| 30 | 3006-633 | COVER,RETAINER | 1 | $12.35 | |
| 31 | 3004-286 | GASKET, RETAINER | 1 | $12.35 | |
| 32 | 3007-669 | RETAINER,OIL PUMP SHAFT | 1 | $106.95 | |
| 33 | 3005-126 | O RING | 1 | $4.26 | |
| 34 | 3423-300 | WASHER,M10X18X1 | 1 | $2.75 | |
| 35 | 3006-520 | GEAR,OIL PUMP DRIVEN | 1 | $187.95 | |
| 36 | 3010-070 | KEY,TYPE 3 M3(FASTENER) | 1 | $3.99 |
