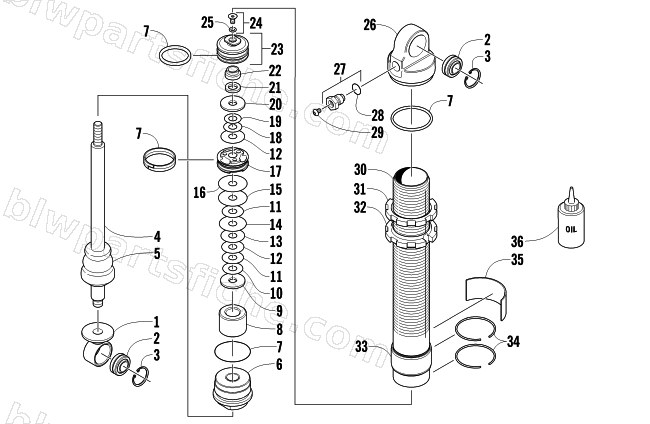

2011 Arctic Cat ARCTIC CAT SNO PRO 600 CROSS COUNTRY — FRONT SUSPENSION SHOCK ABSORBER
2011 ARCTIC CAT SNO PRO 600 CROSS COUNTRY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2703-702 | SHOCK,SKI-FOX (CROSS COUNTRY) | 1 | $494.95 | |
| 1 | 2603-794 | EYELET,ASSY-.498 SHAFT | 1 | $185.95 | |
| 2 | 1604-664 | BEARING,SPHERICAL | 1 | $46.95 | |
| 3 | 3604-147 | RETAINING RING,INTERNAL SPIRAL | 1 | $16.49 | |
| 4 | 2603-796 | SHAFT,.620OD X 10.250 TLG | 1 | $58.95 | |
| 5 | 2603-793 | BUMPER,.620 SHAFT X 1.950 TLG | 1 | $32.95 | |
| 6 | 2603-203 | BEARING, .625 ASSY (END CAP) | 1 | $105.95 | |
| 7 | 2603-795 | KIT,REBUILD-SKI SHOCK | 1 | $184.95 | |
| 8 | 2603-835 | SPACER,SHAFT-.640 X 1.25 X 1.50 | 1 | $53.95 | |
| 9 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 10 | 0603-334 | VALVE, .800X.008 (3/8ID) | 1 | $12.95 | |
| 11 | 0603-337 | VALVE, .900X.008(3/8ID) | 1 | $12.95 | |
| 12 | 0603-343 | VALVE,1.100X.008(3/8ID) | 1 | $6.95 | |
| 13 | 0603-344 | VALVE,1.100X.010(3/8ID) | 1 | $12.95 | |
| 14 | 0603-347 | VALVE,1.250X.010(3/8ID) | 1 | $13.95 | |
| 15 | 0603-349 | VALVE,1.300X.008(3/8ID) | 1 | $13.95 | |
| 16 | 0603-348 | VALVE,1.300X.006(3/8ID) | 1 | $13.95 | |
| 17 | 2603-834 | PISTON,DAMPING-1.459 BORE-.035 ORIFACE | 1 | $110.95 | |
| 18 | 0603-331 | VALVE, .700X.008(3/8ID) | 1 | $6.95 | |
| 19 | 3604-171 | VALVE, .600X.004(3/8ID) | 1 | $12.95 | |
| 20 | 3604-170 | PLATE,TOP-OUT-1.125OD X .378ID X .080 | 1 | $21.95 | |
| 21 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 22 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 23 | 2604-816 | PISTON,FLOATING-ASSY | 1 | $116.95 | |
| 24 | 1604-316 | SCREW, RELIEF W/ O-RING | 1 | $4.95 | |
| 25 | 1604-425 | O-RING(FOX ONLY) | 1 | $4.95 | |
| 26 | 2603-792 | BODY,CAP ASSY-1.459 BORE | 1 | $147.95 | |
| 27 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 28 | 1604-318 | O-RING-END CAP FITTING(FOX ONLY) | 1 | $11.95 | |
| 29 | 0624-097 | SCREW, MACH HSBH #8-32X.25 (SS) | 1 | $0.85 | |
| 30 | 2603-791 | BODY,1.459 BORE-11.300 TLG | 1 | $242.95 | |
| 31 | 2604-841 | RING,PRELOAD LOCK-2.40 OD X .300 TLG | 1 | $50.95 | |
| 32 | 2604-840 | RING,PRELOAD-2.40 OD X .600 TLG | 1 | $50.95 | |
| 33 | 2603-246 | GUIDE,SPRING-ALUM BODY | 1 | $26.95 | |
| 34 | 2603-245 | RETAINER,.062 CS X 1.54 OD-WEAR SLEEVE | 1 | $6.89 | |
| 35 | 2603-475 | DECAL,SHOCK BODY-ZERO PRO-5.100X.800 | 1 | $22.01 | |
| 36 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
