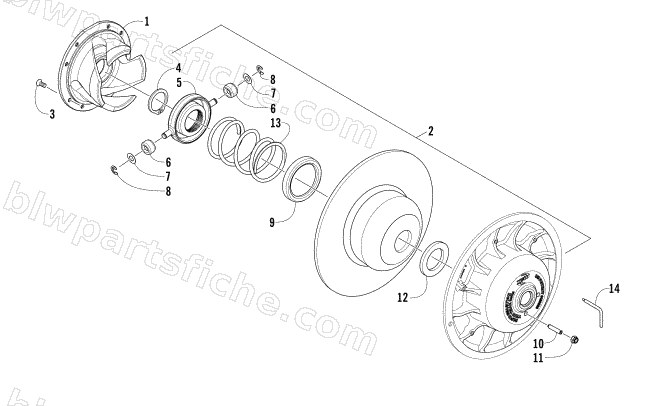

2011 Arctic Cat ARCTIC CAT SNO PRO 600 CROSS COUNTRY — DRIVEN CLUTCH
2011 ARCTIC CAT SNO PRO 600 CROSS COUNTRY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0726-314 | CLUTCH,DRIVEN- BLK/ORN- 44/42-ASSY | 1 | $765.95 | |
| 1 | 0648-809 | CAM ASSY,TEAM L/W-44/42 | 1 | $279.95 | |
| 2 | 0726-273 | CLUTCH,DRIVEN-10.75 BASIC L/W | 1 | $749.95 | |
| 3 | 0648-748 | SCREW,CAP-TSFH 1/4-28 X.625 (TI) | 1 | $2.95 | |
| 4 | 0648-771 | RING,RETAINING-EXTERNAL 1.375" | 1 | $15.11 | |
| 6 | 0648-699 | ROLLER,CLUTCH(TI) | 1 | $42.95 | |
| 7 | 0648-700 | WASHER,THRUST(TI) | 1 | $1.37 | |
| 8 | 0648-701 | RING,RETAINING-.375(TI) (R/B 0823-440) | 1 | $6.95 | |
| 9 | 0648-703 | WASHER,THRUST(TI) | 1 | $22.01 | |
| 10 | 0648-707 | SCREW,SET HEX SKT-1/4-20X1.25(TI) | 1 | $13.73 | |
| 11 | 0648-777 | NUT,FLEXLOCK-1/4-20 UNC (TEAM IND.) | 1 | $0.40 | |
| 12 | 0648-772 | SPACER,1.510 ID X 2.950 OD X .062 | 1 | $15.11 | |
| 13 | 0648-792 | SPRING,BLK/ORN-180/280 | 1 | $78.95 | |
| 14 | 0644-424 | TOOL,CLUTCH BELT ADJUST | 1 | $6.06 |
