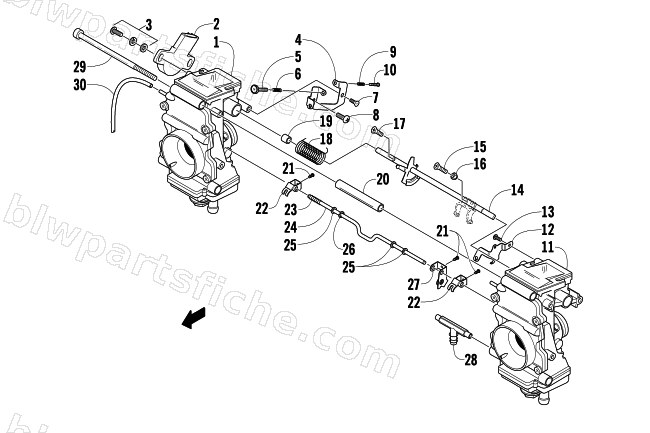

2011 Arctic Cat ARCTIC CAT SNO PRO 600 CROSS COUNTRY — CARBURETOR - EXTERNAL PARTS
2011 ARCTIC CAT SNO PRO 600 CROSS COUNTRY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 6506-311 | SENSOR | 1 | $223.95 | |
| 3 | 6506-085 | SCREW | 1 | $1.37 | |
| 4 | 6506-331 | BRACKET | 1 | $50.95 | |
| 5 | 6506-061 | ADJUSTER SCREW | 1 | $20.63 | |
| 6 | 6506-062 | SPRING | 1 | $5.51 | |
| 7 | 6506-063 | SCREW | 1 | $1.37 | |
| 8 | 6506-064 | SCREW | 1 | $1.37 | |
| 9 | 6506-056 | SPRING | 1 | $3.95 | |
| 10 | 6506-134 | SCREW | 1 | $3.95 | |
| 12 | 6506-326 | BRACKET | 1 | $45.95 | |
| 13 | 6506-075 | SCREW | 1 | $3.16 | |
| 14 | 6506-412 | SHAFT ASSY | 1 | $144.95 | |
| 15 | 6506-042 | SCREW | 1 | $3.44 | |
| 16 | 6506-041 | RING | 1 | $33.95 | |
| 17 | 6506-046 | SCREW | 1 | $3.44 | |
| 18 | 6506-081 | WASHER | 1 | $2.95 | |
| 19 | 6506-048 | SPACER | 1 | $3.95 | |
| 20 | 6506-152 | SPACER | 1 | $34.95 | |
| 21 | 6506-066 | SCREW | 1 | $3.16 | |
| 22 | 6506-333 | STARTER LEVER | 1 | $32.95 | |
| 23 | 6506-082 | SPRING | 1 | $6.95 | |
| 24 | 6506-372 | SHAFT | 1 | $137.95 | |
| 26 | 6506-084 | E-RING | 1 | $2.88 | |
| 27 | 6506-375 | STARTER LEVER | 1 | $39.95 | |
| 28 | 6506-127 | NIPPLE ASSY. | 1 | $38.95 | |
| 29 | 6506-065 | BOLT | 1 | $17.87 | |
| 30 | 0770-907 | HOSE,CARB VENT | 1 | $22.01 |
