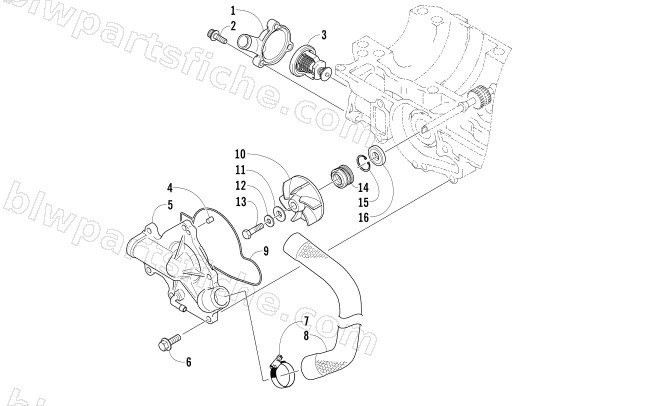

2011 Arctic Cat ARCTIC CAT SNO PRO 500 — WATER PUMP AND THERMOSTAT
2011 ARCTIC CAT SNO PRO 500
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-914 | CAP,THERMOSTAT | 1 | $84.95 | |
| 2 | 3007-446 | BOLT,THERMOSTAT CAP | 1 | $3.44 | |
| 3 | 3007-041 | THERMOSTAT,WATER | 1 | $101.95 | |
| 4 | 3005-899 | PIN | 1 | $3.44 | |
| 5 | 3006-942 | COVER ASSY.-WATER PUMP | 1 | $295.95 | |
| 6 | 3007-409 | BOLT | 1 | $3.16 | |
| 7 | 3006-324 | CLAMP '02 440 SNO PRO | 1 | $29.95 | |
| 9 | 3006-356 | O-RING,WATER PUMP COVER '02 440 SNO PRO | 1 | $49.95 | |
| 10 | 3005-697 | IMPELLER,WATER PUMP | 1 | $54.95 | |
| 11 | 3003-431 | WASHER,6MM | 1 | $3.44 | |
| 12 | 3003-432 | WASHER,6MM | 1 | $3.85 | |
| 13 | 3003-426 | BOLT, 6 X 13 YEL CHROM. | 1 | $2.75 | |
| 14 | 3007-180 | SEAL,MECHANICAL | 1 | $52.95 | |
| 15 | 3007-714 | CIRCLIP,BEARING FASTENER | 1 | $4.68 | |
| 16 | 3007-431 | OIL SEAL-10X22X6 | 1 | $16.49 |
