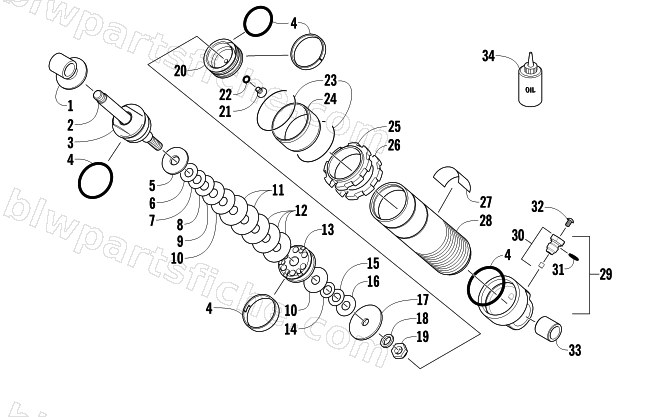

2011 Arctic Cat ARCTIC CAT SNO PRO 500 — REAR SUSPENSION FRONT ARM SHOCK ABSORBER
2011 ARCTIC CAT SNO PRO 500
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2704-039 | SHOCK,FRT ARM-FOX | 1 | $218.95 | |
| 1 | 0604-625 | EYELET, SHOCK-ASSY | 1 | $95.95 | |
| 2 | 3604-582 | SHAFT,SHOCK-CHROME.498 OD X 6.350 TLG | 1 | $60.95 | |
| 3 | 2604-812 | BEARING,ENDCAP -.498" X .960"-ASSY | 1 | $194.95 | |
| 4 | 2604-815 | SEAL/BEARING-REBUILD KIT | 1 | $92.95 | |
| 5 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 6 | 2603-045 | VALVE,SHOCK- .700 DIA X .010 | 1 | $5.95 | |
| 7 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 8 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 9 | 0603-340 | VALVE,1.000X.008(3/8ID) | 1 | $12.95 | |
| 10 | 0603-343 | VALVE,1.100X.008(3/8ID) | 1 | $6.95 | |
| 11 | 0603-349 | VALVE,1.300X.008(3/8ID) | 1 | $13.95 | |
| 12 | 0603-350 | VALVE,1.300X.010(3/8ID) | 1 | $17.95 | |
| 13 | 2603-897 | PISTON,HIGH FLOW-.035 ORIFICE | 1 | $72.95 | |
| 14 | 3604-171 | VALVE, .600X.004(3/8ID) | 1 | $12.95 | |
| 15 | 0603-731 | VALVE, .700X.004(3/8ID) | 1 | $13.95 | |
| 16 | 0603-894 | VALVE, SHOCK .900X.004(3/8ID) | 1 | $6.95 | |
| 17 | 3604-170 | PLATE,TOP-OUT-1.125OD X .378ID X .080 | 1 | $21.95 | |
| 18 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 19 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 20 | 2604-816 | PISTON,FLOATING-ASSY | 1 | $116.95 | |
| 21 | 1604-316 | SCREW, RELIEF W/ O-RING | 1 | $4.95 | |
| 22 | 1604-425 | O-RING(FOX ONLY) | 1 | $4.95 | |
| 23 | 2603-245 | RETAINER,.062 CS X 1.54 OD-WEAR SLEEVE | 1 | $6.89 | |
| 24 | 2603-246 | GUIDE,SPRING-ALUM BODY | 1 | $26.95 | |
| 25 | 2604-840 | RING,PRELOAD-2.40 OD X .600 TLG | 1 | $50.95 | |
| 26 | 2604-841 | RING,PRELOAD LOCK-2.40 OD X .300 TLG | 1 | $50.95 | |
| 27 | 2603-475 | DECAL,SHOCK BODY-ZERO PRO-5.100X.800 | 1 | $22.01 | |
| 28 | 3604-412 | BODY,SHOCK-ALUM W/GROOVES-1.459"X6.10" | 1 | $120.95 | |
| 29 | 2604-817 | BODY,CAP-ALUM BODY-ASSY | 1 | $164.95 | |
| 30 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 31 | 1604-318 | O-RING-END CAP FITTING(FOX ONLY) | 1 | $11.95 | |
| 32 | 0624-097 | SCREW, MACH HSBH #8-32X.25 (SS) | 1 | $0.85 | |
| 33 | 1604-791 | BUSHING,SHOCK-.890ID X .800 | 1 | $15.11 | |
| 34 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
