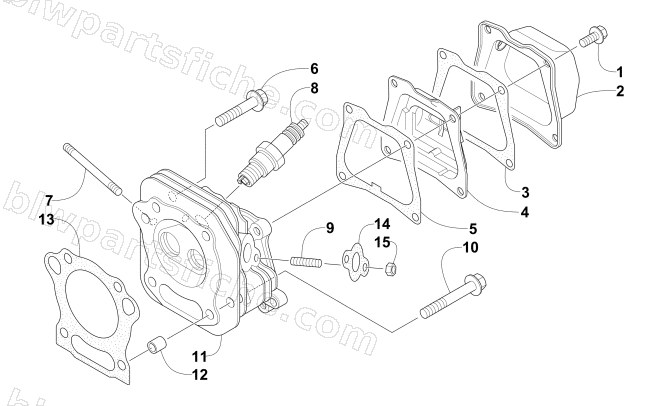

2011 Arctic Cat AC 120 SNO PRO — CYLINDER AND AIR BREATHER ASSEMBLY
2011 AC 120 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3020-121 | SCREW, CAP | 1 | $3.16 | |
| 2 | 3020-027 | COVER, CYLINDER HEAD | 1 | $37.95 | |
| 3 | 3020-026 | GASKET, HEAD COVER | 1 | $19.25 | |
| 4 | 3020-025 | BREATHER, AIR | 1 | $56.95 | |
| 5 | 3020-028 | GASKET, AIR BREATHER | 1 | $19.25 | |
| 6 | 3020-124 | SCREW, CAP | 1 | $4.95 | |
| 7 | 3020-093 | BOLT, STUD | 1 | $13.73 | |
| 8 | 0217-809 | SPARK PLUG, BPR4ES | 1 | $4.54 | |
| 9 | 3020-118 | BOLT, STUD | 1 | $2.83 | |
| 10 | 3020-125 | SCREW, CAP | 1 | $4.95 | |
| 11 | 3020-008 | HEAD, CYLINDER | 1 | $203.95 | |
| 12 | 3020-151 | PIN, DOWEL | 1 | $2.47 | |
| 13 | 3020-009 | GASKET, CYLINDER HEAD | 1 | $27.95 | |
| 14 | 3020-059 | GASKET, EXHAUST PIPE | 1 | $8.21 | |
| 15 | 3020-117 | NUT | 1 | $4.68 |
