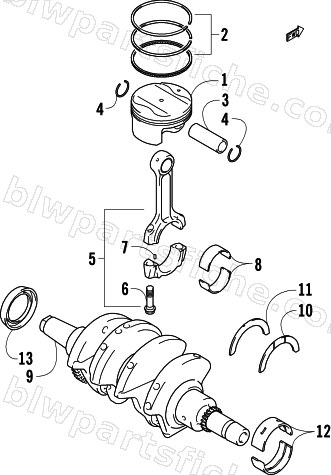

2010 Arctic Cat Z1 TURBO EXT SNO PRO — PISTON AND CRANKSHAFT ASSEMBLY
2010 Z1 TURBO EXT SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-778 | PISTON | 1 | $327.95 | |
| 2 | 3007-104 | RING SET,PISTON | 1 | $153.95 | |
| 3 | 3007-779 | PIN,PISTON | 1 | $57.95 | |
| 4 | 3008-585 | SNAP RING,M24 | 1 | $3.71 | |
| 5 | 3007-780 | CONNROD ASSY | 1 | $342.95 | |
| 6 | 3007-107 | BOLT,CONNROD | 1 | $22.01 | |
| 7 | 3007-108 | PIN,CONNROD | 1 | $3.30 | |
| 8 | 3007-109 | BEARING,CRANK PIN | 1 | $24.77 | |
| 8 | 3007-110 | BEARING,CRANK PIN | 1 | $24.77 | |
| 8 | 3007-111 | BEARING,CRANK PIN | 1 | $23.39 | |
| 8 | 3007-112 | BEARING,CRANK PIN | 1 | $24.77 | |
| 9 | 3007-781 | CRANKSHAFT ASSY | 1 | $3,080.95 | |
| 10 | 3007-114 | BEARING,CRANK THRUST | 1 | $17.87 | |
| 11 | 3007-115 | BEARING,CRANK THRUST | 1 | $17.87 | |
| 11 | 3007-116 | BEARING,CRANK THRUST | 1 | $17.87 | |
| 11 | 3007-117 | BEARING,CRANK THRUST | 1 | $17.87 | |
| 11 | 3007-119 | BEARING,CRANK THRUST | 1 | $17.87 | |
| 11 | 3007-120 | BEARING,CRANK THRUST | 1 | $17.87 | |
| 12 | 3007-121 | BEARING,CRANKSHAFT | 1 | $20.63 | |
| 12 | 3007-122 | BEARING,CRANKSHAFT | 1 | $20.63 | |
| 12 | 3007-123 | BEARING,CRANKSHAFT | 1 | $20.63 | |
| 13 | 3007-124 | SEAL,CRANKSHAFT OIL(48X64X10.5) | 1 | $66.95 |
