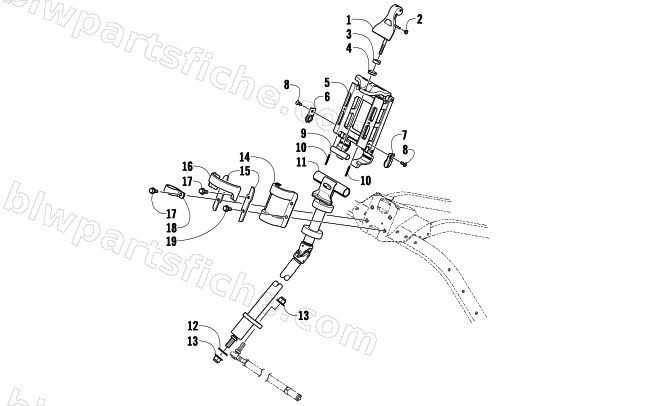

2010 Arctic Cat Z1 1100 EFI — STEERING POST ASSEMBLY
2010 Z1 1100 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8002-138 | SCREW,CAP-HH 5/16-18 X2.25 G5 Z&Y | 1 | $0.95 | |
| 1 | 1705-104 | LEVER, CAM -ADJ RISER-ASSY | 1 | $44.95 | |
| 2 | 0605-506 | CAP,STEERING ADJUSTER | 1 | $13.73 | |
| 2 | 0605-839 | KNOB, LOCK PIN | 1 | $4.26 | |
| 3 | 0605-507 | LOCK,ADJUSTING-STEERING | 1 | $60.95 | |
| 3 | 0605-837 | WASHER, CAM ADJ RISER | 1 | $3.44 | |
| 4 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 4 | 0605-828 | CUP, CAM ADJ RISER | 1 | $4.26 | |
| 5 | 1705-353 | POST,STEERING-PTD BLK | 1 | $311.95 | |
| 5 | 1705-195 | BLOCK,RISER-S/P ASSY | 1 | $224.95 | |
| 6 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 | |
| 6 | 0605-832 | RETAINER, RISER BLOCK-RH | 1 | $82.95 | |
| 7 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 7 | 0605-833 | RETAINER, RISER BLOCK-LH | 1 | $54.95 | |
| 8 | 1705-087 | BRKT, BEARING-UPPER-PTD | 1 | $29.95 | |
| 8 | 1623-018 | SCREW,SELF TAP-TSFH 10-16X.50 TYPE B | 1 | $0.26 | |
| 9 | 1705-201 | PLATE,BEARING BRACKET-PTD BLK | 1 | $6.75 | |
| 9 | 0605-831 | END, LOCK ROD-ADJ RISER | 1 | $34.95 | |
| 10 | 0605-993 | BRKT,WIRE PROTECTOR | 1 | $16.49 | |
| 10 | 0605-840 | SPRING, BOTTOM CAP(ADJ RISER) | 1 | $32.95 | |
| 11 | 8408-621 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y W/2353 | 1 | $0.95 | |
| 11 | 1705-351 | POST,STEERING-PTD BLK (ADJUSTABLE) | 1 | $316.95 | |
| 12 | 3008-040 | CLAMP, HEAT SENSOR,M12 | 1 | $1.92 | |
| 13 | 8408-617 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y W/2353 | 1 | $1.50 | |
| 14 | 0623-677 | CABLE TIE,PUSH MOUNT-X MAS CLIP | 1 | $1.09 |
